50 Ton Rated
50 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
Made In Canada
Made In Canada
5-20 Second Cycle Time
5-20 Second Cycle Time

Split Wood Twice as Fast – No Waiting Between Cycles

Less time, less effort, more wood. Built for serious homeowners and pros.

6206

$8,800.00

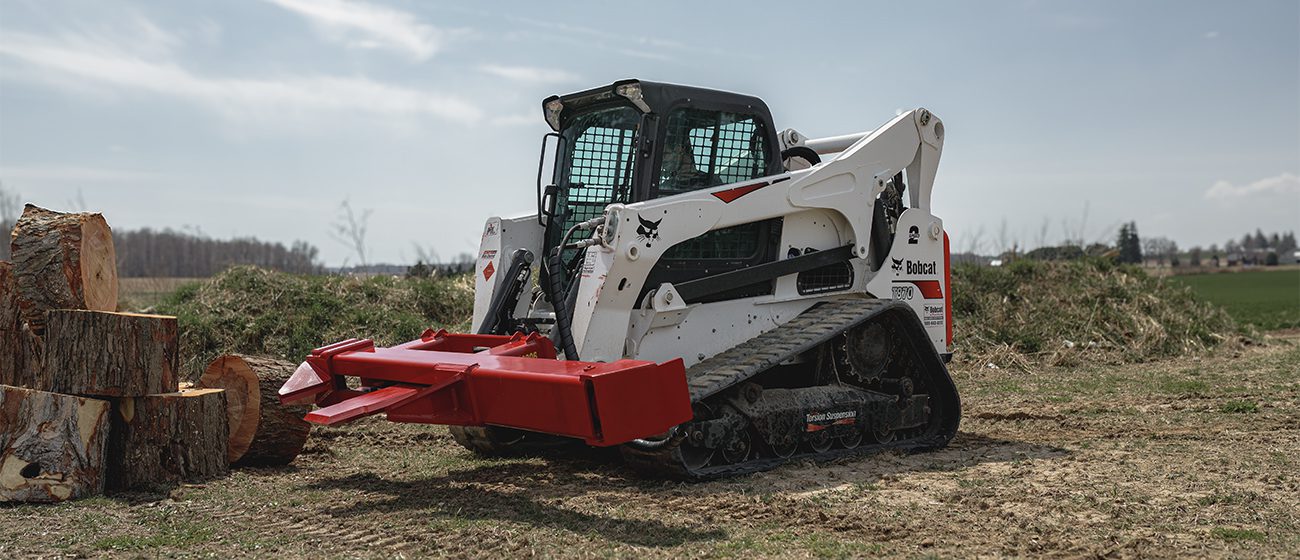

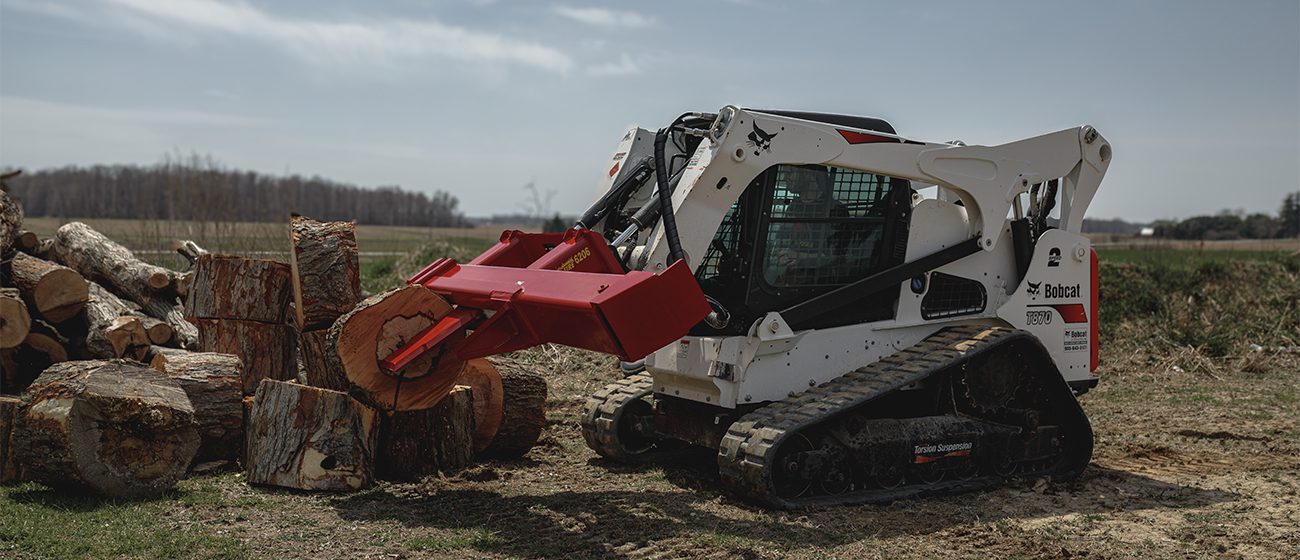

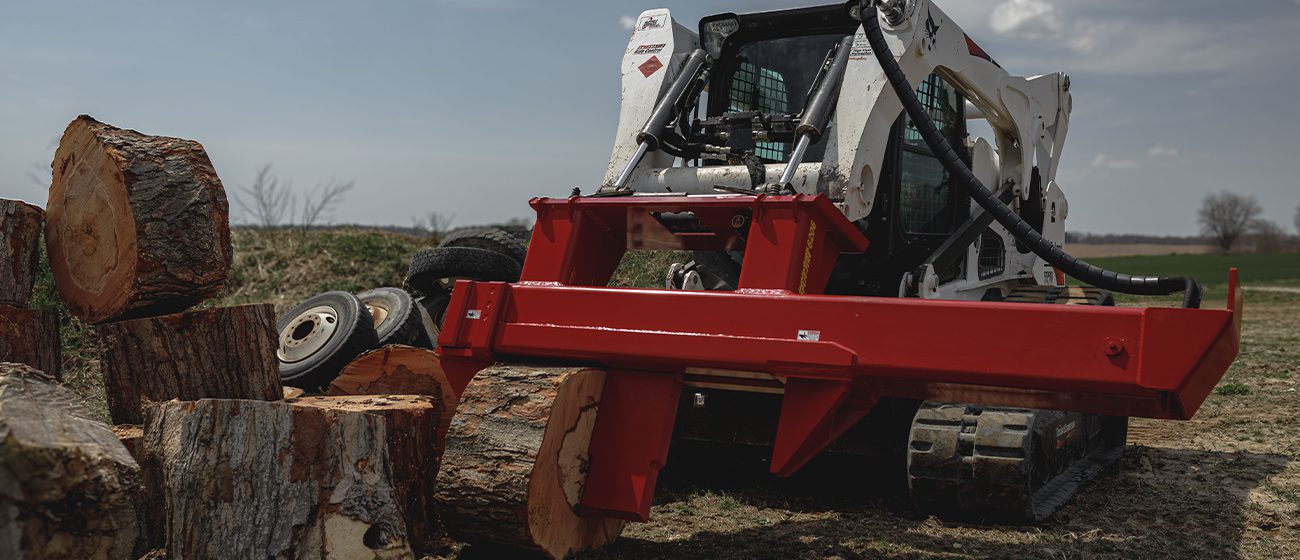

Split-Fire’s largest and most powerful skid-steer attachment, the 6206 cross-mounted log splitter is an absolute beast. With 50 tons of splitting force at 3500 PSI, and a massive 20” knife, there is nothing that this splitter can’t handle, no matter how large or knotty. Because the cylinder is housed inside the 5/8” thick steel frame with 5/8” reinforcements, you don’t need to have any worries about treating this splitter roughly. The cross-mounted design allows you to sit safely in your loader’s cab with perfect visibility of the splitting zone directly in front of you, while the 6206 easily tackles the hardest and most massive wood you can give it.

Don’t have a skid-steer but still interested? Check out the 6206’s excavator-mounted brother, the 6209.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

10 Weeks Build Time

SEE IT IN ACTION

MACHINE SPECS

Frame
10" x 10" steel tube
Log Capacity
30" - 72" diameter
Tonnage
50 tons @ 3500 psi
Cycle Time
5 sec. extend and return stroke @ 75 GPM | 8 sec. @ 50 GPM | 20 sec. @ 20 GPM
Cycle Time =
13.412 x (30/GPM)
Power Source
Skid Steer | Includes 100” of hose
Pump
Skid Steer
Reservoir
Skid Steer
Stroke Length
30”
Quick Connects
Optional
Overall Width
102.5"
Overall Length
46.5”
Overall Height
19.5”
Weight
1825 lbs
Bed Height
N/A
Knife Height
20”
Cylinder Size
6” x 30"
Hydraulic Flow
20 GPM - 75 GPM
Min. Skid Steer Operating Cap
2400lbs
6206 technical drawing
