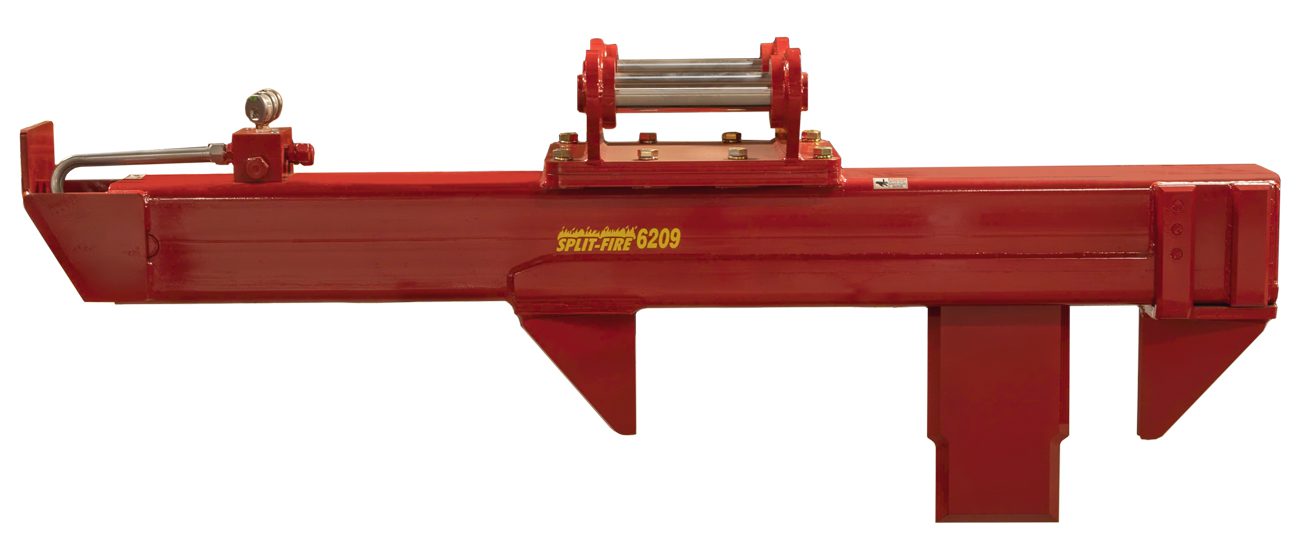

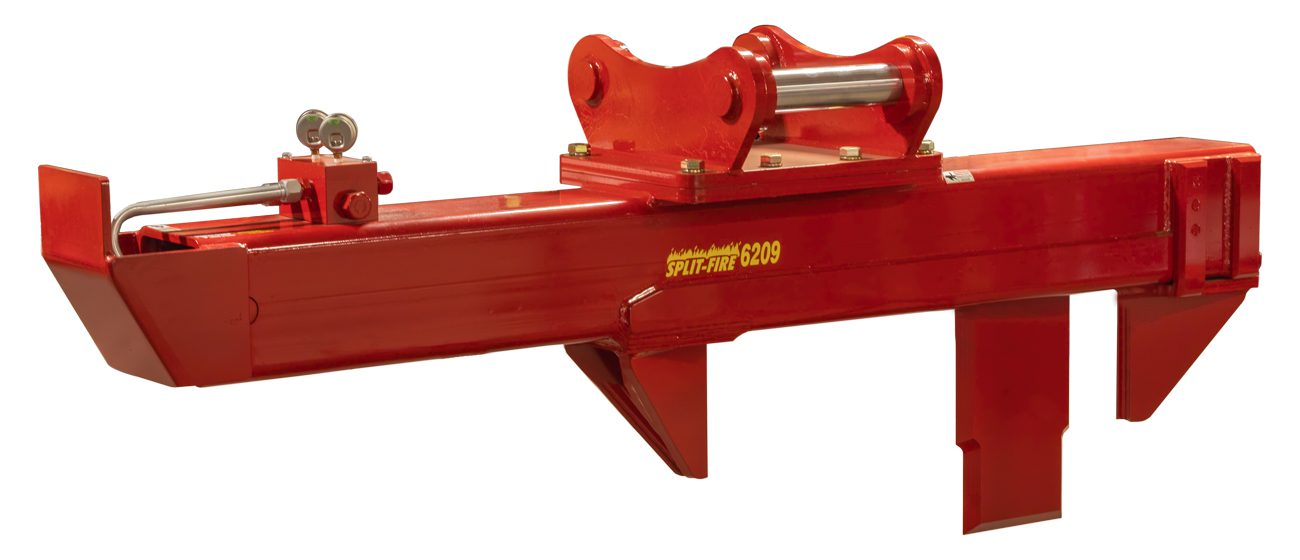

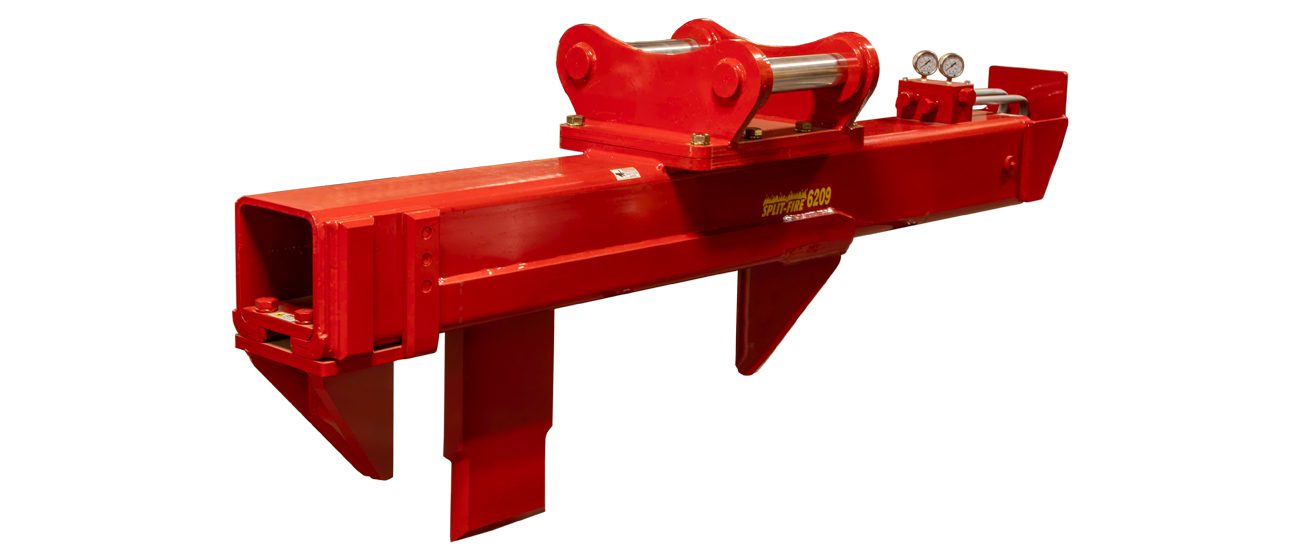

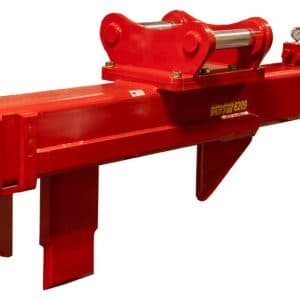

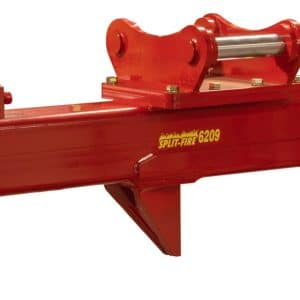

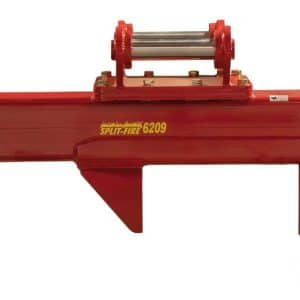

Log Splitter 6209

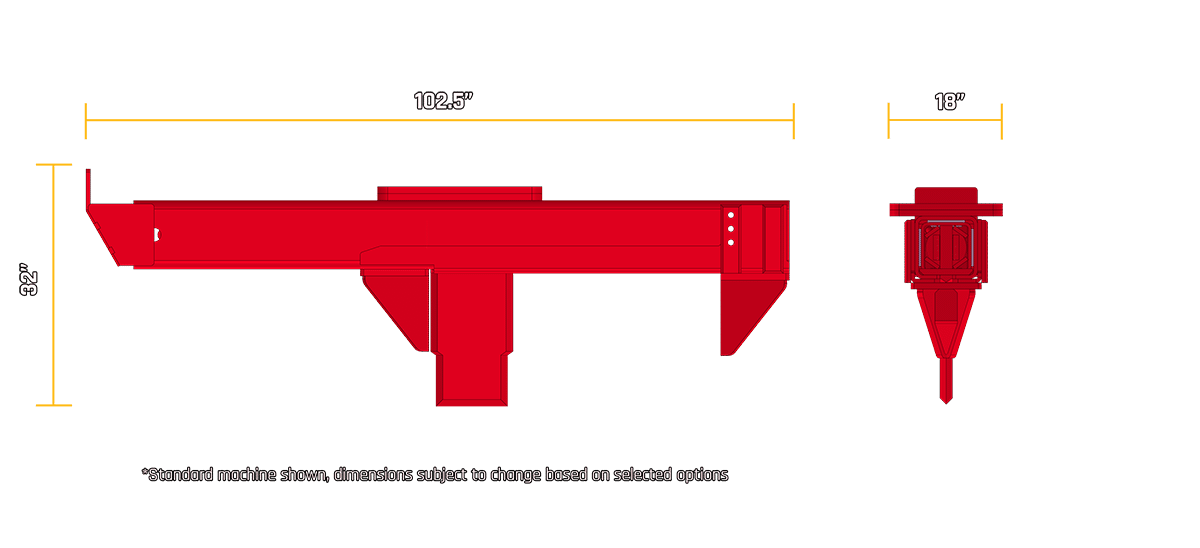

Engineered for serious heavy-duty splitting tasks, this industrial-grade log splitter boasts a rugged 10″ x 10″ steel tube frame and delivers a powerful 50 tons of force at 3500 psi. Designed to process massive logs ranging from 48″ to 72″ in diameter, it’s driven by your excavator’s hydraulic system, utilizing a 6” x 30″ cylinder and a hydraulic flow range of 20 to 75 GPM for efficient performance. With a total cycle time between 8 and 25 seconds and a stroke length of 30″, this machine ensures optimal productivity in demanding environments. The splitter includes 100″ hoses, has optional quick connects, and measures 102.5″ in length, 18″ in width, and 32″ in height, weighing in at 1,875 lbs. With a knife height of 20″, it’s built to dominate oversized logs with precision and power. Ideal for forestry professionals and commercial operators seeking unmatched log splitting capacity.
Read More
Works great! No lack of power. Lift works awesome!!
Goodmorning, Have put at least 15 hrs on the 3203 and it works mint !!!! A very high quality product guys !!! Thanks again … Rob Hoffman.
My order went through dad’s 4 by tool and supply in Vermont. It is a 36 inch 3203 with log lift with a 4″ extension. By the way your sales staff is awesome. Kioti CK3510SE
Hi Kyle and team. Very happy with my splitter on my kubota 121
excavator. Great job engineering it. Take care, – Claude Sheldon
Here is our new 4203 on a 1978 IH 86 Hydro. It runs as a great combo, and I love the flexibility of the 3pt.
