32 Ton Rated
32 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
Log Lifter Compatible
Log Lifter Compatible
11-13 Second Cycle Time
11-13 Second Cycle Time
Interchangeable 4-Way Wedge
Interchangeable 4-Way Wedge

Split Wood Twice as Fast – No Waiting Between Cycles

Less time, less effort, more wood. Built for serious homeowners and pros.

4403

$3,373.00

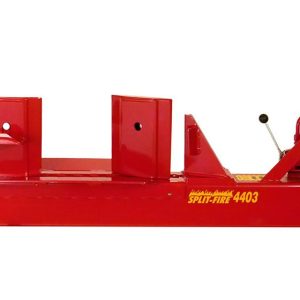

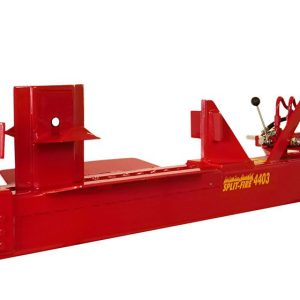

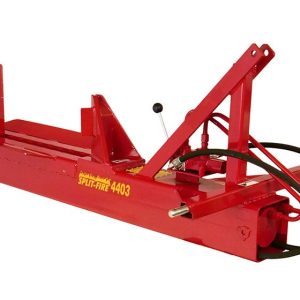

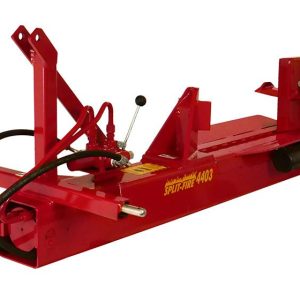

Need 32 tons of pushing power with more flexibility? The 4403 3 point log splitter offers 32 tons of splitting force at 2900 PSI and includes a large 2-way knife and 4-way wedge. The frame is longer than a 4203 log splitter, and is fully reinforced along the cutting area, fitted with larger log stops, and a heavy duty 4-way slider. Made for large frame tractors that push higher flow and good pressure, this machine will be hard pressed to find a log it can’t split.

The gnarly wood can be split with the 2-way to reduce shards, and the 4-way utilized for straighter grains sections improving productivity. Weld-on options can be added to make this workhorse specific for your needs. The 4403 3pt hitch log splitter will split big and small, needing no maintenance and will last for decades, not years.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

3-4 Weeks Build Time

SEE IT IN ACTION

MACHINE SPECS

Frame
7" x 7" steel tube
Tonnage
32 tons @ 2900 psi
Cycle Speed
9 sec. @ 20 gpm | 15 sec. @ 12 gpm | 23 sec. @ 8 gpm
Power Source
3 Pt. Hitch
Pump
Tractor Pump Displacement
Reservoir
Tractor
Stroke Length
24"
Bed Width
16½“
Quick Connects
Not included
Overall Width
34"
Overall Length
76"
Overall Height
26"
Weight
530 lbs
Bed Height
3 Pt. Hitch Raise/Lower
Knife Height
12” / 2-way | 12" / 4-way
Cylinder Size
4½” x 24"
Hydraulic Flow
8 gpm – 20 gpm
4403 technical drawing
