32 Ton Rated
32 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
Extended Stroke Options
Extended Stroke Options
Log Lifter Compatible
Log Lifter Compatible
11-13 Second Cycle Time
11-13 Second Cycle Time

Split Wood Twice as Fast – No Waiting Between Cycles

Less time, less effort, more wood. Built for serious homeowners and pros.

4203

$2,603.00

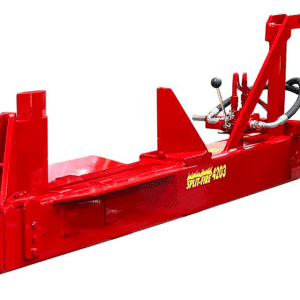

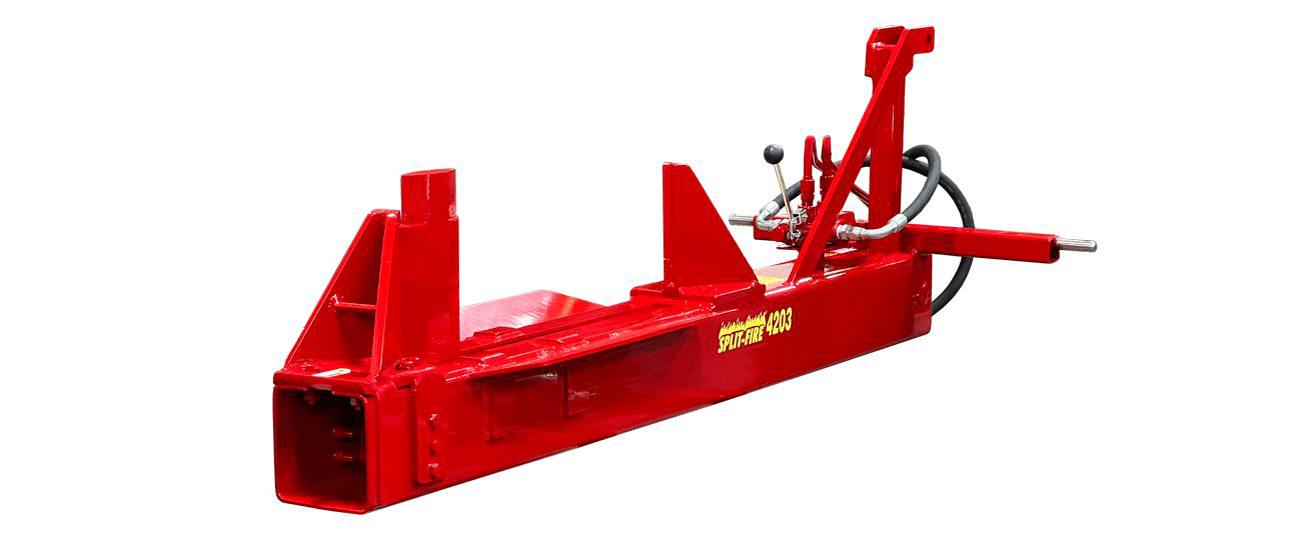

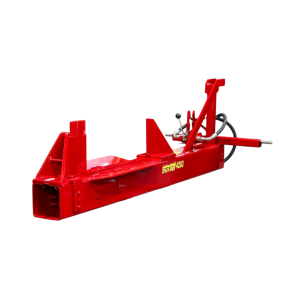

Log Splitter 4203

Why maintain another engine and hydraulic system? Utilize that farm tractor with the 4203 3 point hitch wood splitter. Made for large frame tractors, the 4203 will push 32 tons at 2900 PSI. Made for large, twisted logs, the 4203 is a 3pt hitch implement that is meant to be used, and then forgotten about until you need it next. Maintenance free due to the UHMW slider, and all fluid and power being utilized from the tractor. The internal cylinder keeps components safe from damage and the elements.

Add weld-on options like the hydraulic log lifter to help lift the big stuff or an extended stoke to make that perfect long stroke log splitter for boiler wood. Simple and powerful, this 4203 3pt log splitter is made to last, all while offering safe, simple, and efficient operation.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

3-4 Weeks Build Time

SEE IT IN ACTION

MACHINE SPECS

Frame
7" x 7" steel tube
Tonnage
32 tons @ 2900 psi
Cycle Speed
9 sec. @ 20 gpm | 15 sec. @ 12 gpm | 23 sec. @ 8 gpm
Power Source
3 Pt. Hitch
Pump
Tractor Pump Displacement
Reservoir
Tractor
Stroke Length
24"
Bed Width
16"
Quick Connects
Not included
Overall Width
34"
Overall Length
74"
Overall Height
26"
Weight
430 lbs
Bed Weight
3 Pt. Hitch Raise/Lower
Knife Weight
12"
Cylinder Size
4½” x 24"
Hydraulic Flow
8 gpm – 20 gpm
Total Cycle Time =
7.625(Stroke/GPM)

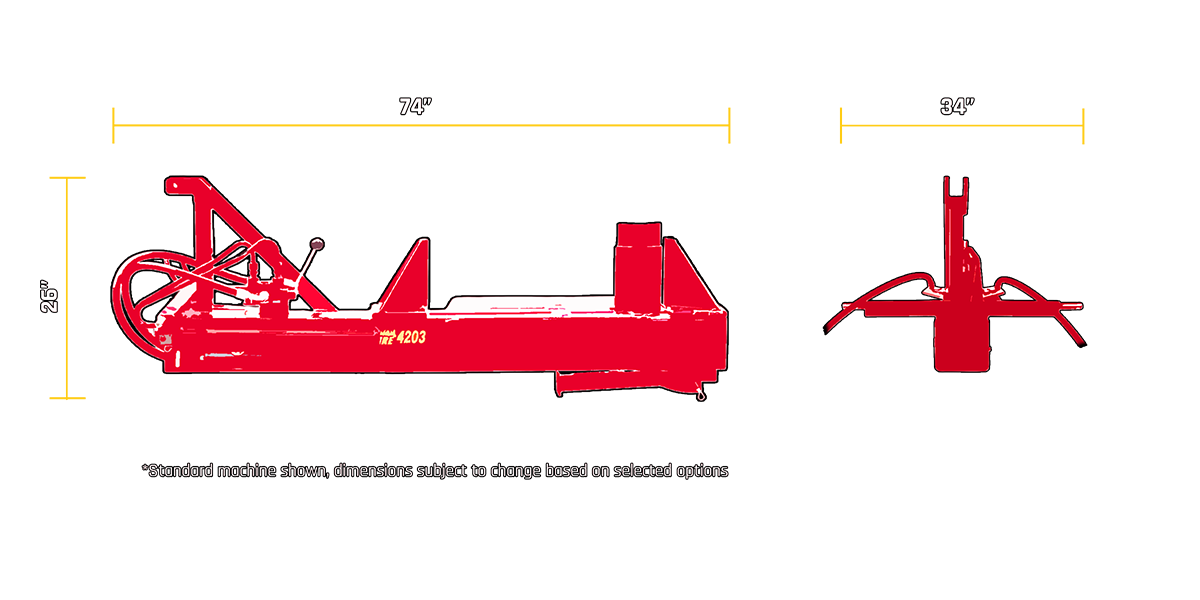

4203 technical drawing
