Split Wood Twice as Fast – No Waiting Between Cycles

Less time, less effort, more wood. Built for serious homeowners and pros.

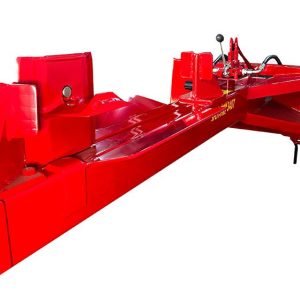

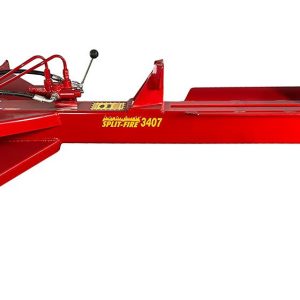

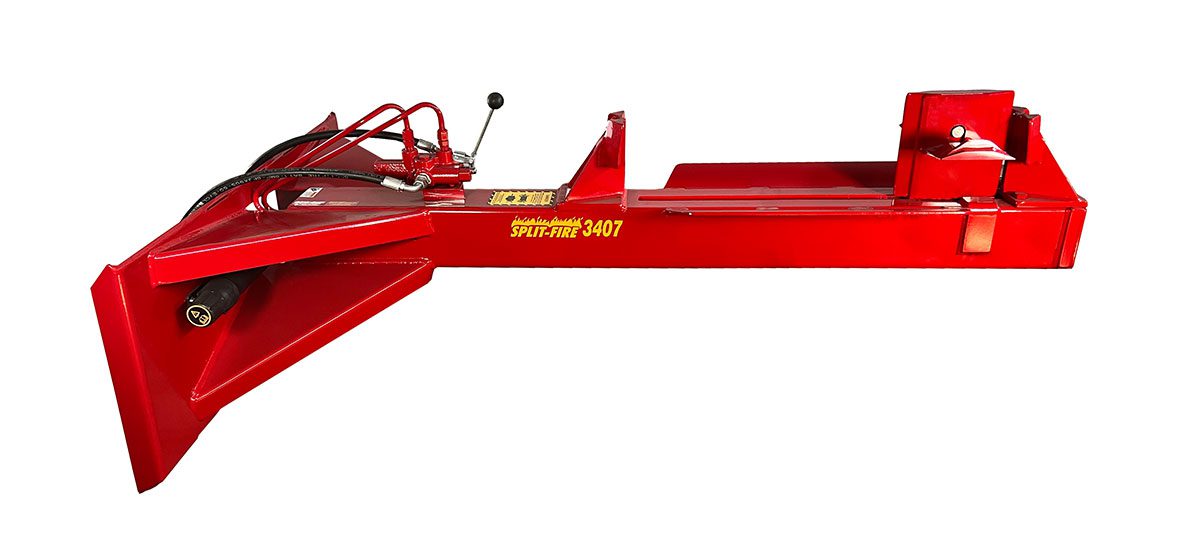

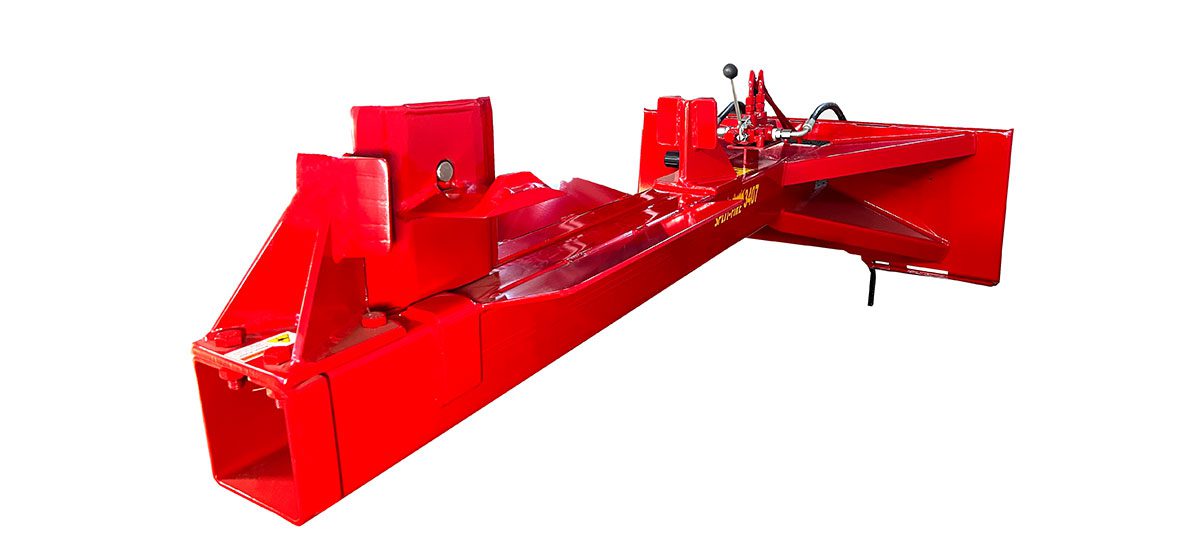

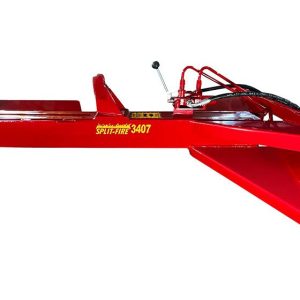

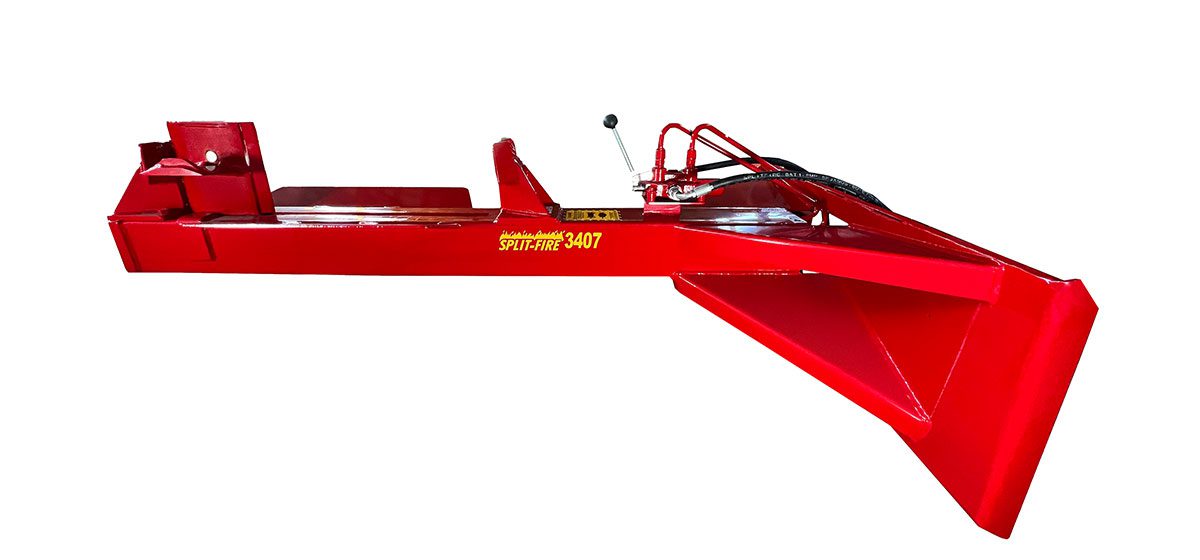

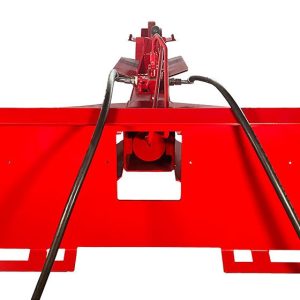

3407

$2,490.00

The Split-Fire 3407 is the perfect log splitter for farmers and homesteaders looking to get increased productivity out of your mini-skid or small to medium skid-steer. This splitter gets the same impressive 20 tons of rated splitting force at 2900 PSI and effective 4.5 second cycle time at 20 GPM of the Split-Fire 3207, but with the addition of an interchangeable 2-way/4-way wedge which is capable of increasing efficiency by up to 100%. Other upgrades include a lengthened and reinforced frame, large log stops, and a specifically-made 4-way slider all to allow this wood splitter to handle the additional forces created by 4-way splitting.

The 3407 is a maintenance-free log splitter, as all hydraulics are provided by your loader, and the splitting wedge runs on self-lubricating UHMW slide pads. With multiple attachment styles available, the splitter can be hooked up to your loader and ready to split in under a minute, then put away in storage until next season. Multiple optional accessories including a hydraulic log lifter are available, so you can customize this machine to perfectly suit your set-up.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

3-4 Weeks Build Time

SEE IT IN ACTION

MACHINE SPECS

Frame
6" x 6" Steel Tube
Tonnage
20 Tons Splitting Force @ 2900 PSI
Cycle Time
9 Sec. Extend and Return Stroke @ 20 GPM | 15 Sec. @ 12 GPM
Power Source

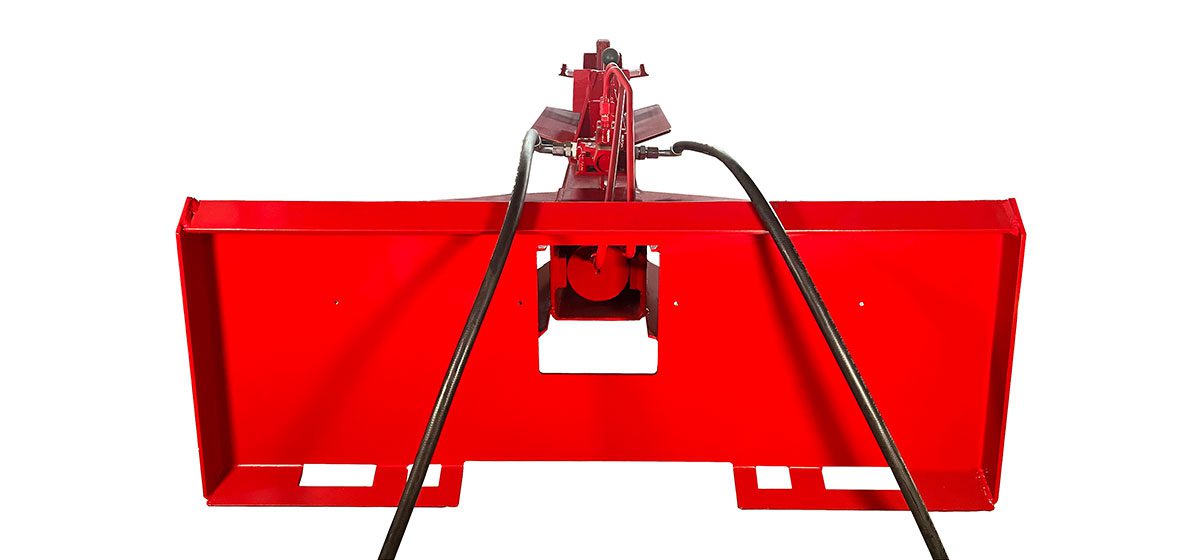

Skid Steer Attach Includes 5' of Hose
Cycle
4.679(Stroke/GPM)
Pump
Skid Steer Pump Displacement
Reservoir
Skid Steer
Stroke Length
24"
Bed Width
15"
Connections
1/2" NPT
Overall Width
47"
Overall Length
76.5"
Overall Height
18.5"
Weight
430 lb.
Bed Height
Skid Steer Plates Raise/Lower
Knife Height
9.5"
Cylinder Size
3.5” x 24"
Hydraulic Flow
4 GPM - 12 GPM
3407 technical drawing
