20-22 Ton Rated
20-22 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
Extended Stroke Options
Extended Stroke Options
Log Lifter Compatible
Log Lifter Compatible
4.5 Second Cycle Time
4.5 Second Cycle Time

Split Wood Twice as Fast – No Waiting Between Cycles

Less time, less effort, more wood. Built for serious homeowners and pros.

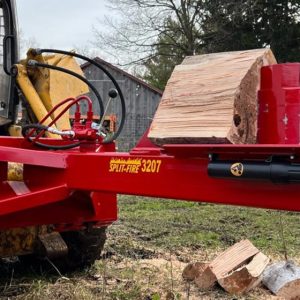

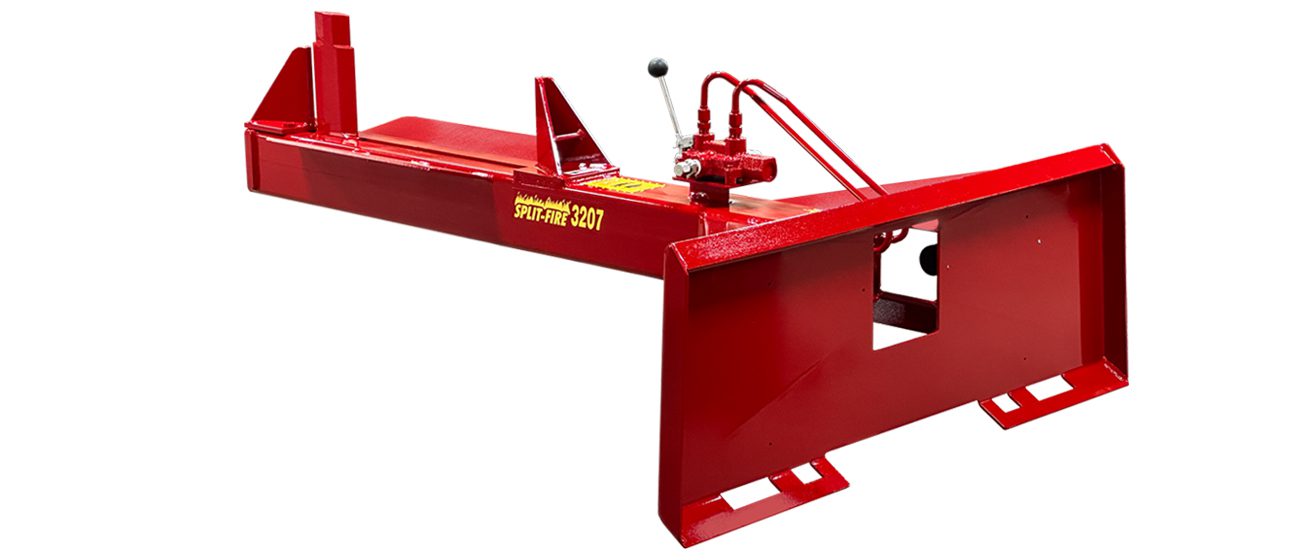

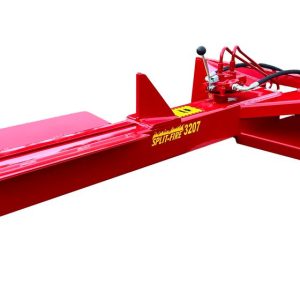

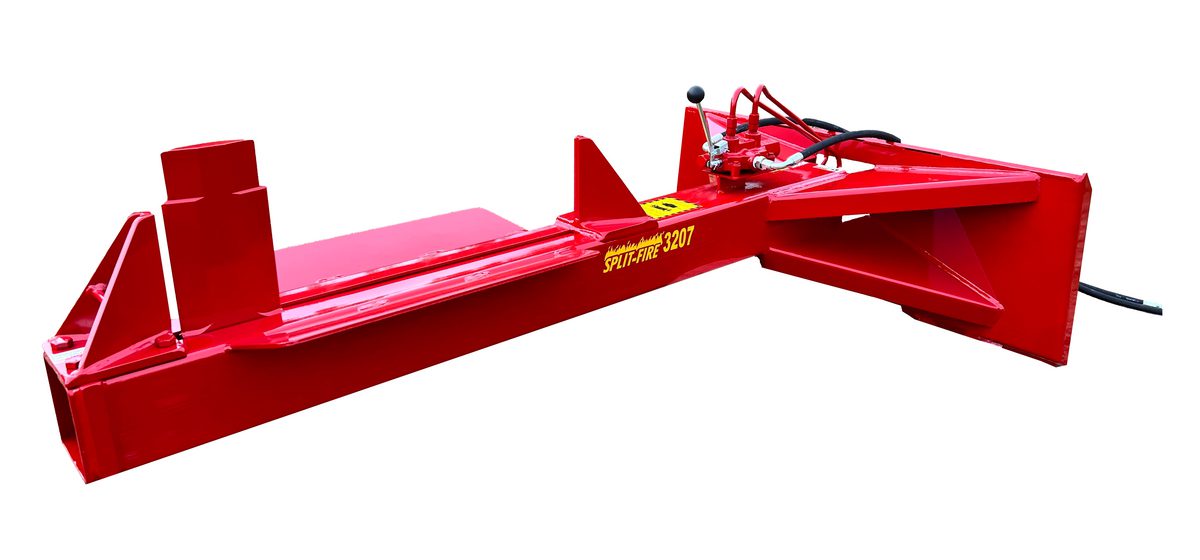

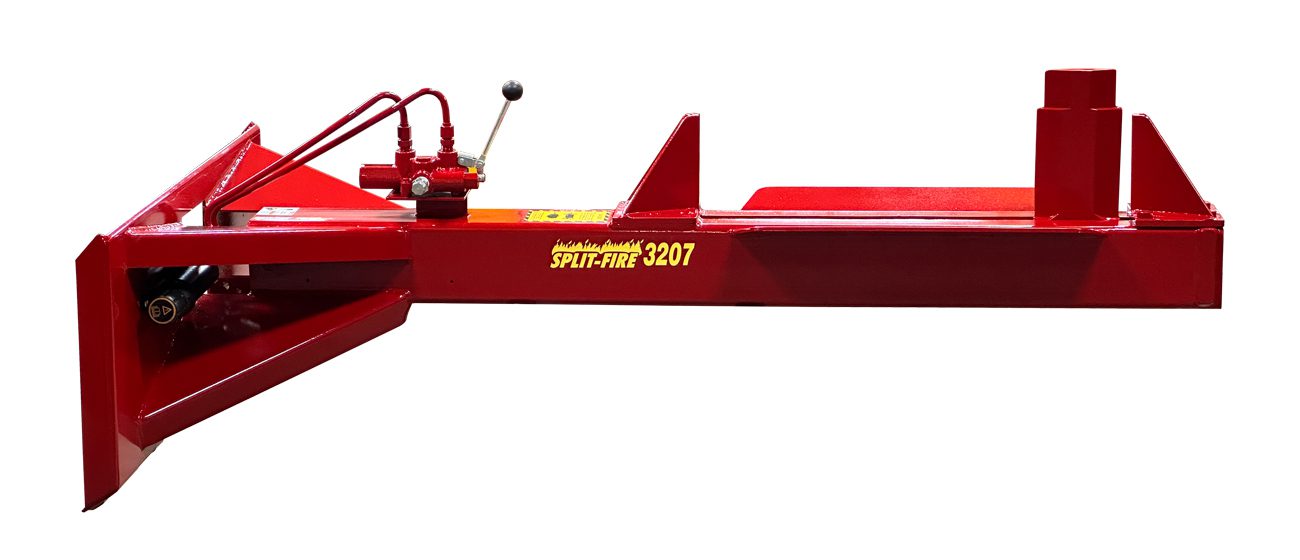

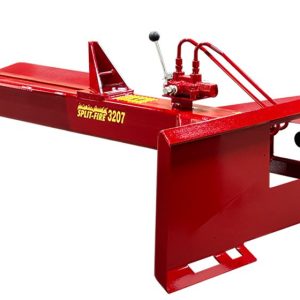

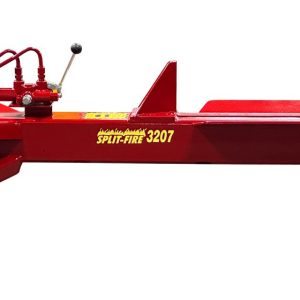

3207

$2,048.00

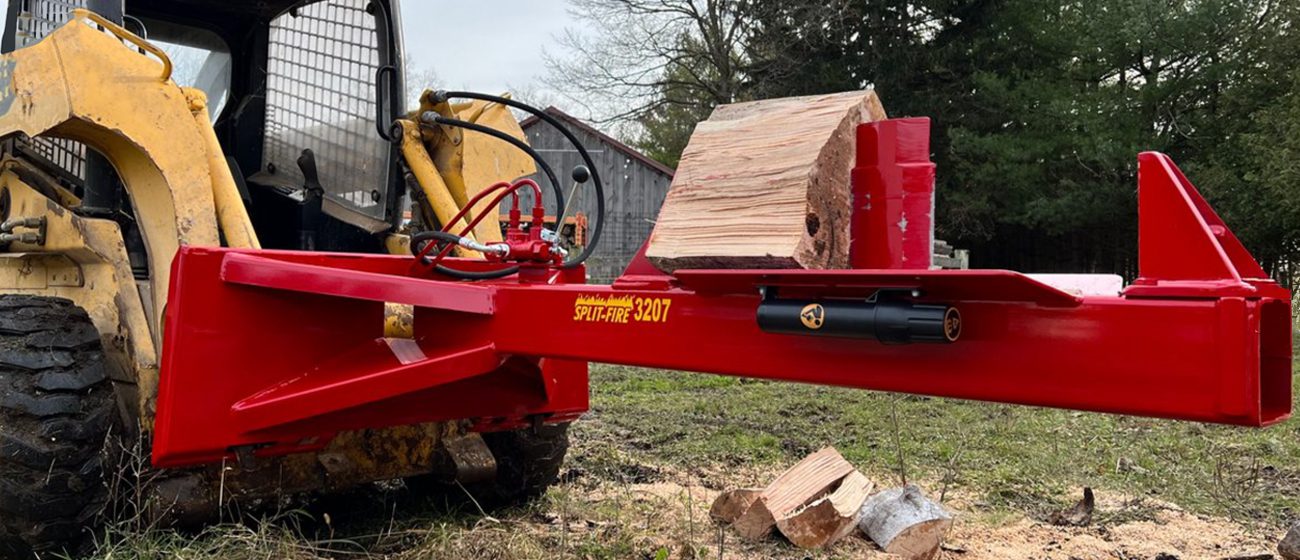

A perfect log splitter to complement your mini-skid or small to medium skid-steer, the Split-Fire 3207 can use your loader’s hydraulic flow and pressure to split wood with impressive speed and power. Pushing 20 tons of rated splitting force at 2900 PSI and with an effective 4.5 second cycle time at 20 GPM thanks to Split-Fire’s signature 2-way splitting design, the 3207 is a favorite of farmers and homesteaders with an assortment of large and small logs to split.

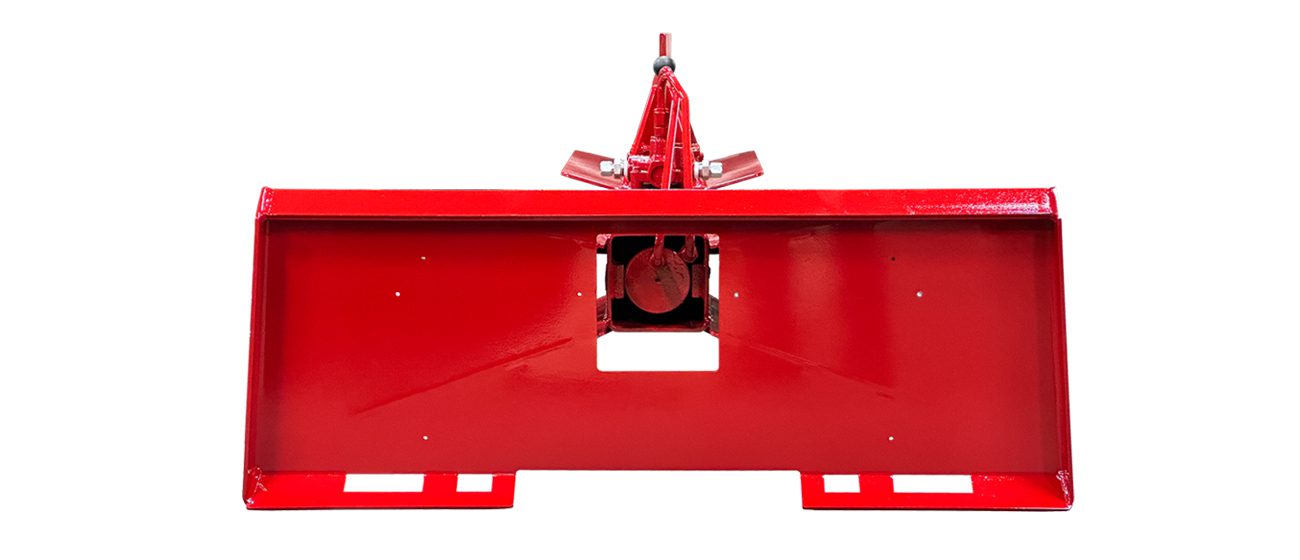

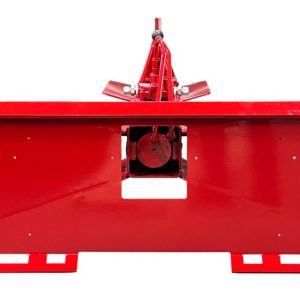

This wood splitter can be mounted and hooked up to your skid-steer in less than a minute, and multiple attachment styles are available to ensure compatibility with your loader. Since the skid-steer is providing all of the hydraulics, and the 3207 uses self-lubricating UHMW slide pads, it is a zero-maintenance machine, so you can be sure it will always be ready for you to grab and get to splitting right away. For even greater efficiency and ease of use, multiple optional accessories such as a hydraulic log lifter are available. Safe, rugged, and effortless to operate, the Split-Fire 3207 transforms your loader into a high-output firewood production machine.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

3-4 Weeks Build Time

SEE IT IN ACTION

MACHINE SPECS

Frame
6" x 6" Steel Tube
Tonnage
20 Tons @ 2900 PSI
Cycle Time
9 Sec. Extend and Return Stroke @ 20 GPM | 15 Sec. @ 12 GPM
Power Source
Skid Steer Attach | Includes 5' of Hose
Cycle Time =
4.679(Stroke/GPM)
Pump
Skid Steer Pump Displacement
Reservoir
Skid Steer
Stroke Length
24"
Bed Width
15"
Connections
1/2" NPT
Overall Width
47"
Overall Length
75.5"
Overall Height
18.5"
Weight
370 lb.
Bed Height
Skid Steer Plates Raise/Lower
Knife Height
11"
Cylinder Size
3.5” x 24"
Hydraulic Flow
4 GPM - 12 GPM
3207 technical drawing
