Split Wood Twice as Fast – No Waiting Between Cycles

Less time, less effort, more wood. Built for serious homeowners and pros.

3455/3465

$4,685.00

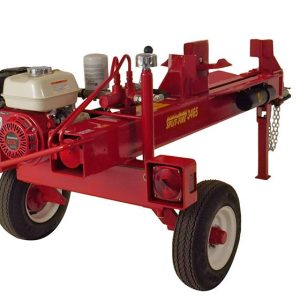

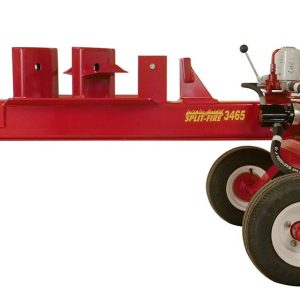

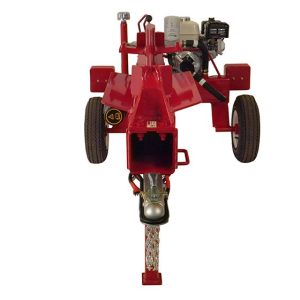

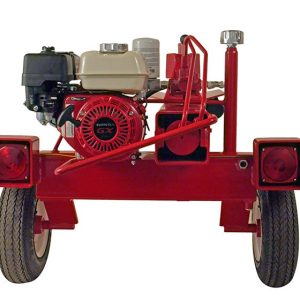

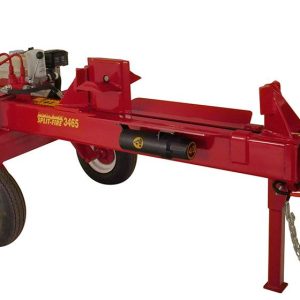

The Split-fire 3455/3465 gas powered log splitter is the perfect machine for medium farms and large estates. In certain cases, it is also used in equipment rental locations. The 20-22 tons of splitting force has plenty of power to split large 36”+ diameter rounds. Although similar in power and speed to the 3255/3265 log splitter, the 3455/3465 offers an interchangeable 2-way / 4-way knife. And no, it’s not just an added 2-way / 4-way knife. The frame is lengthened and reinforced, along with specific 4-way sliders, stops, and stub.

When time is money and the wood is straight, the interchangeable knife can increase productivity by 100%. It can be simply changed in 10 seconds by the removal of a quick-change pin. This allows flexibility when splitting large knotty logs with the 2-way knife or splitting straight grain wood with a 4-way wedge for extra productivity. With the addition of available weld-on options, the 3455/3465 can be built for your needs as a custom wood splitter. The 3455/3465 is nicely sized for medium operations, and is a perfect blend of efficiency, safety, speed and power.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

3-4 Weeks Build Time

SEE IT IN ACTION

MACHINE SPECS

Frame
6" x 6" steel tube
Tonnage
20 tons splitting force
Cycle Speed
9 - 11 seconds
Power Source
Honda GX 160 - 3455 | Honda GX 200 - 3465
Pump
11 GPM low pressure | 2.7 GPM high pressure
Reservoir
12.5 L
Stroke Length
24"
Bed Width
15"
Standard Hitch Size
2" ball coupler
Overall Width
40"
Overall Length
86"
Overall Height
34"
Weight
500 lbs
Bed Height
24"
Knife Height
9” / 2-way | 9½” / 4-way
Cylinder Size
3½” x 24"
Tire Size
4.80" x 8"
3455/3465 technical drawing
