32 Ton Rated
32 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
Extended Stroke Options
Extended Stroke Options
11-13 Second Cycle Time
11-13 Second Cycle Time

Split Wood Twice as Fast – No Waiting Between Cycles

Less time, less effort, more wood. Built for serious homeowners and pros.

4409

$3,411.00

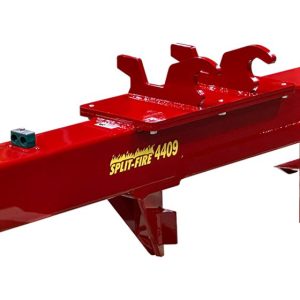

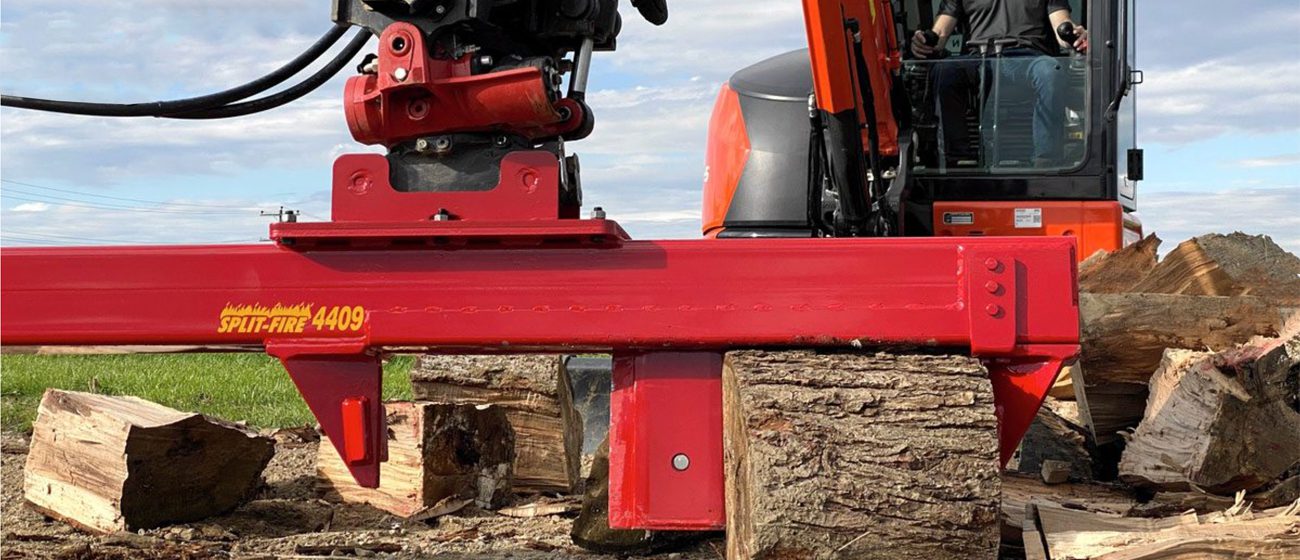

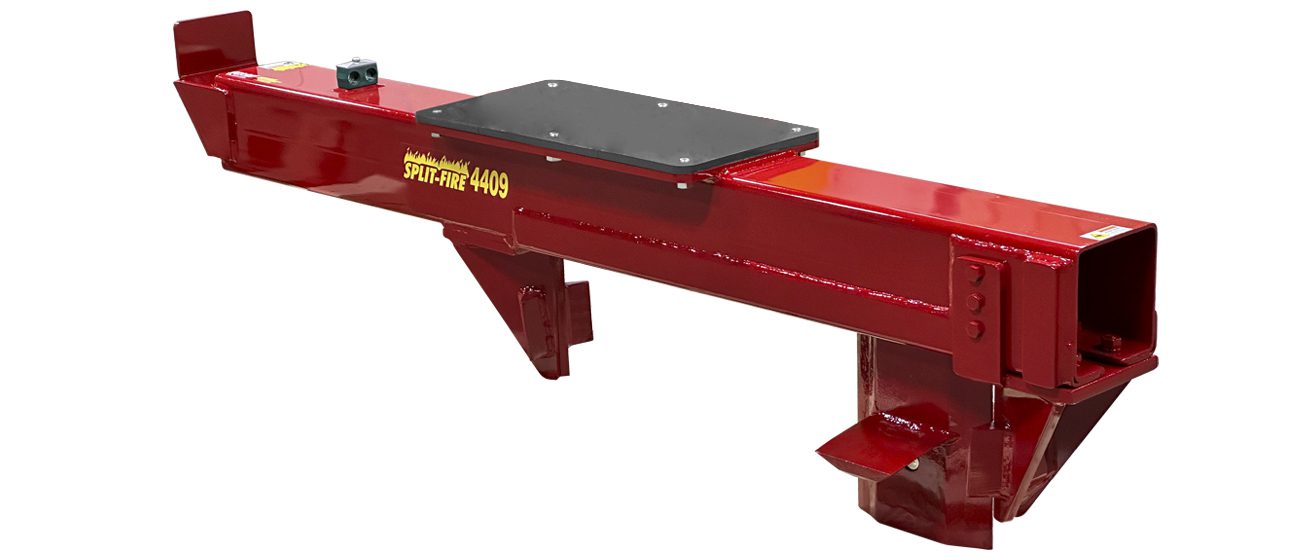

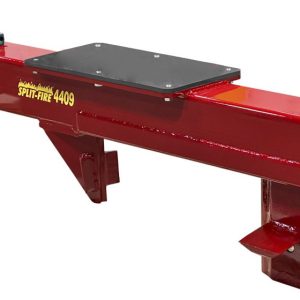

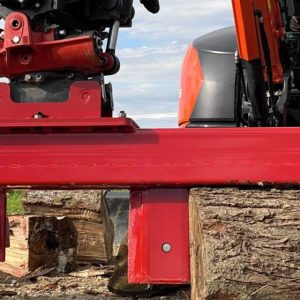

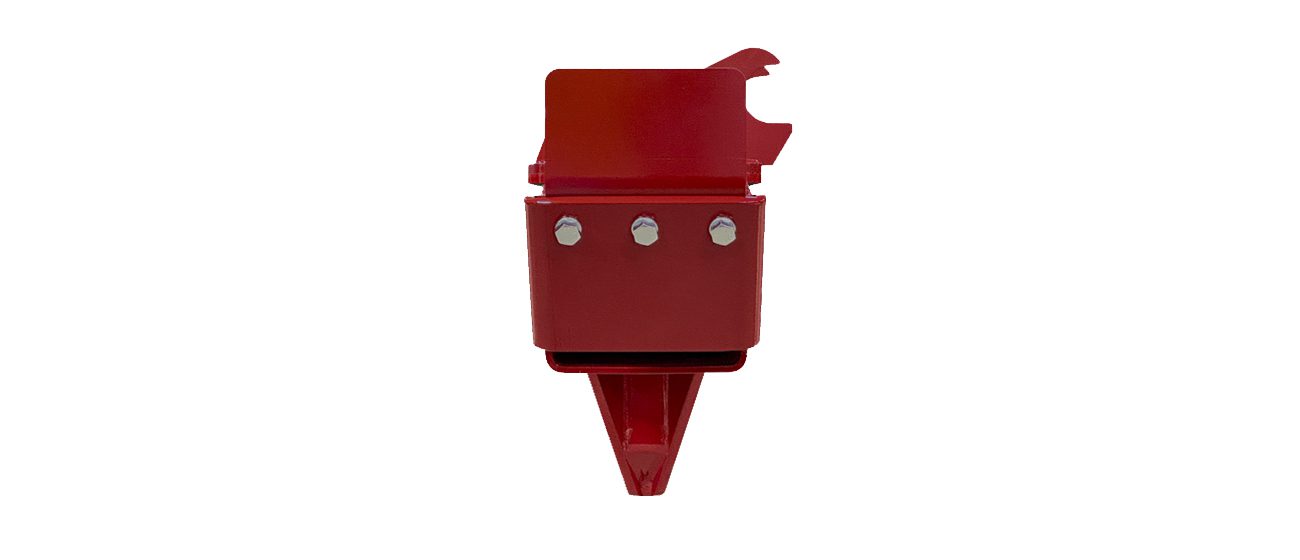

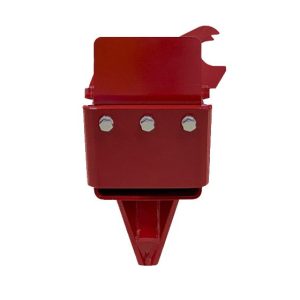

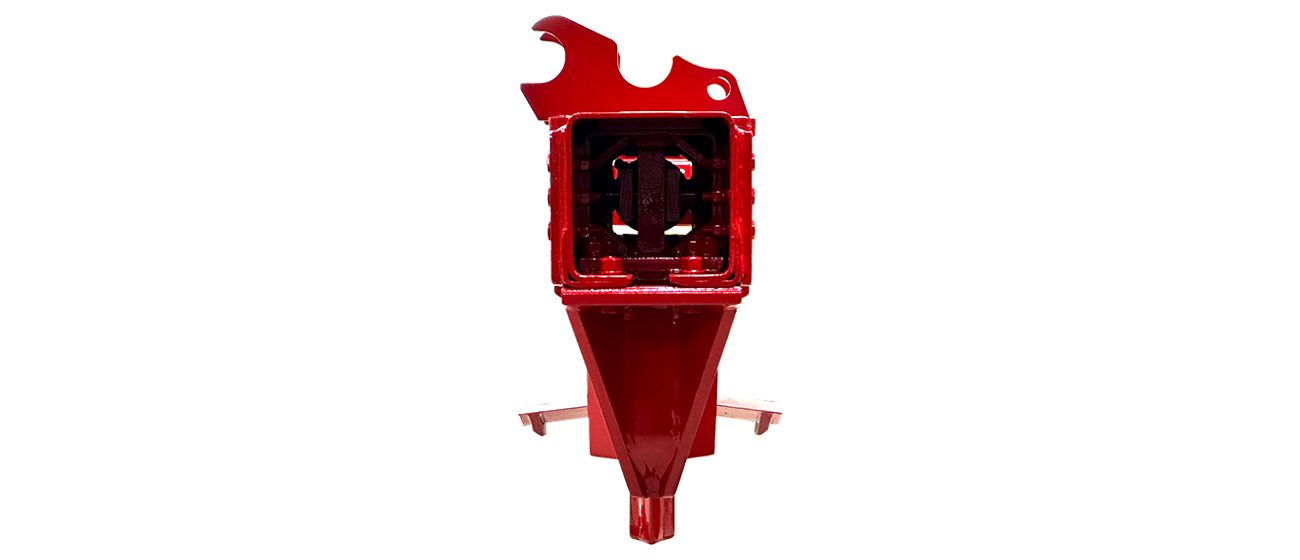

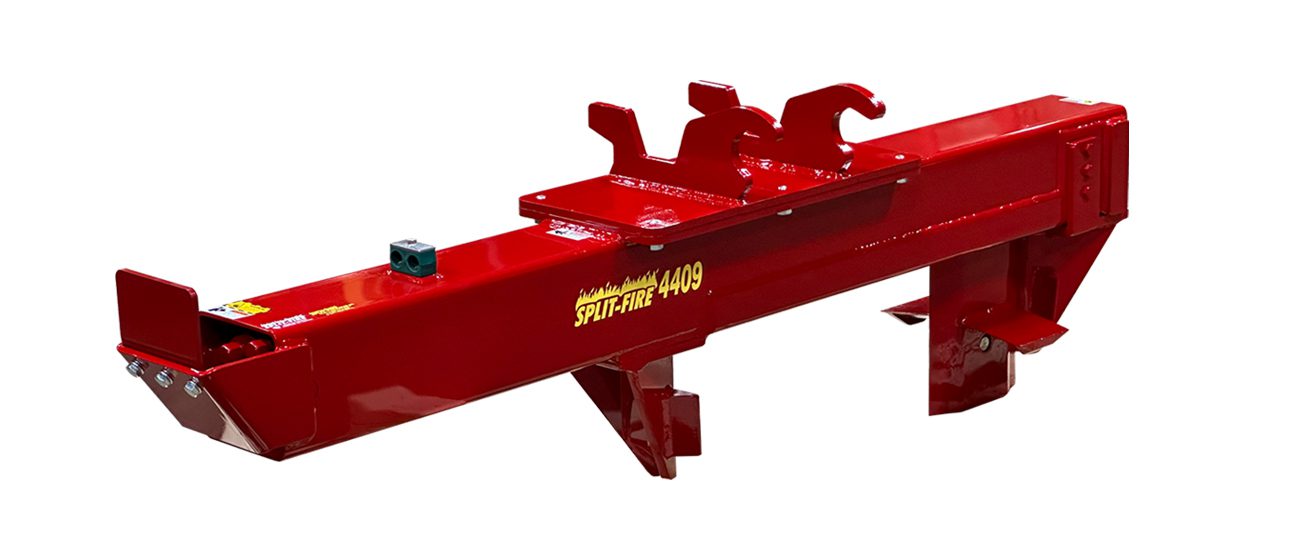

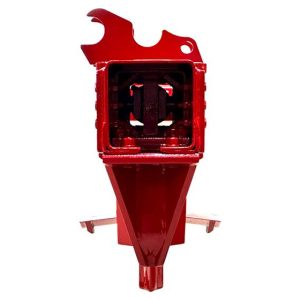

Looking for another productive excavator attachment? The Split-fire 4409 excavator Mount Wood splitter is a similar design to the 4209 excavator log splitter but is equipped with both a 2-way and 4-way knife. Sit in your excavator and bust large logs down with the 2-way knife, then switch to the 4 way and re-split those larger chucks into manageable firewood. Knife changes are done in less than a minute via a quick-change pin. A very efficient setup with a good operator on a small to medium excavator.

This machine is great for splitting down large logs into boiler wood, or chucks for re-splitting for a firewood operation. Pushing 32 tons at 2900 PSI, the 4409 takes all flow and pressure from the auxiliary off the excavator which equals zero maintenance and worries. All you need to do is slip it on via the quick attach, plug in the hydraulics and you’ll be moving and splitting 400 lbs. logs like its kindling.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

3-4 Weeks Build Time

SEE IT IN ACTION

MACHINE SPECS

Frame
7" x 7" steel tube
Log Capacity
40" - 48" diameter
Tonnage
32 tons @ 2900 psi
Cycle Speed
Governed by excavator volume
Power Source
Excavator Attach | Includes 5' of hose
Pump
Excavator Pump Displacement
Reservoir
Excavator
Stroke Length
24"
Quick Connects
Not included
Overall Width
12"
Overall Length
76"
Overall Height
19"
Weight
530 lbs
Bed Height
Excavator Plates raise / lower
Knife Height
12" / 2-way | 12" / 4-way
Cylinder Size
4½” x 24"
Hydraulic Flow
8 gpm - 20 gpm

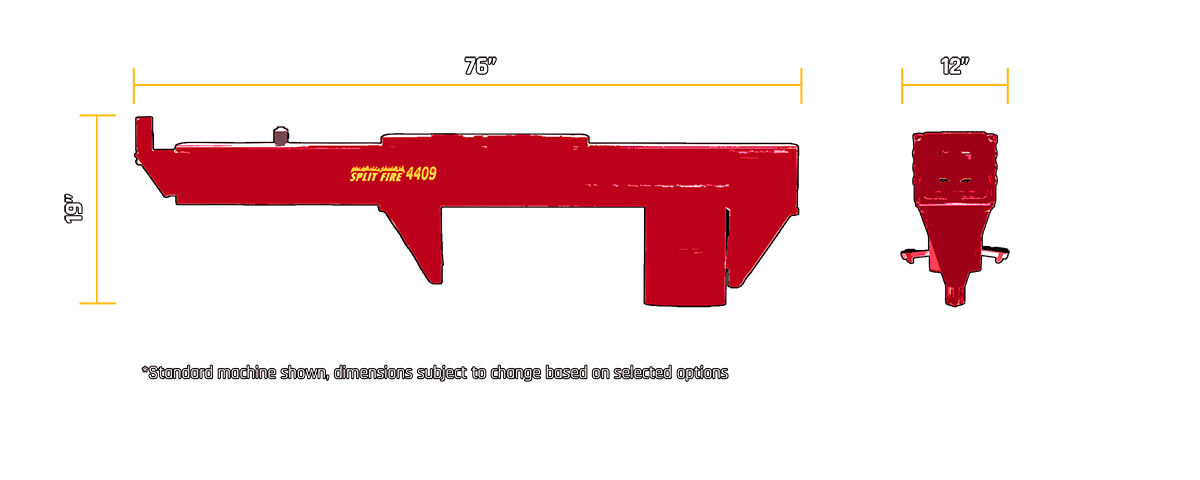

4409 technical drawing
