Split Wood Twice as Fast – No Waiting Between Cycles

Less time, less effort, more wood. Built for serious homeowners and pros.

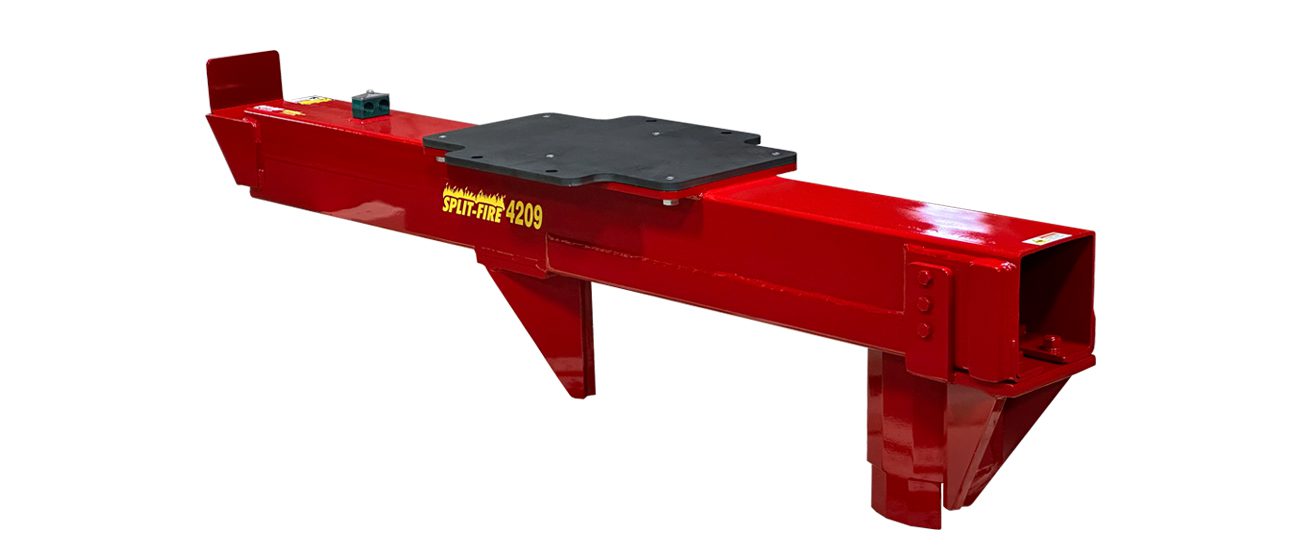

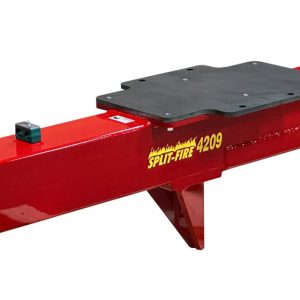

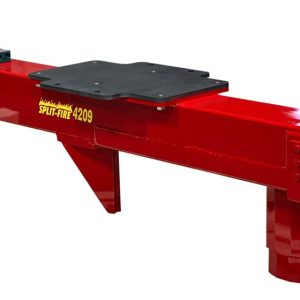

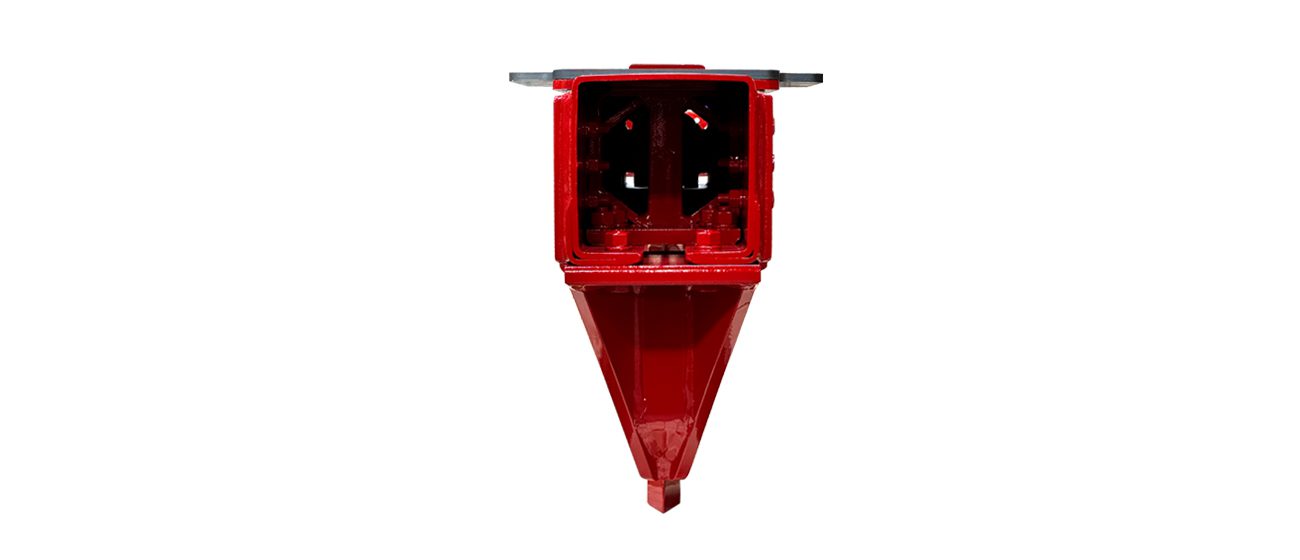

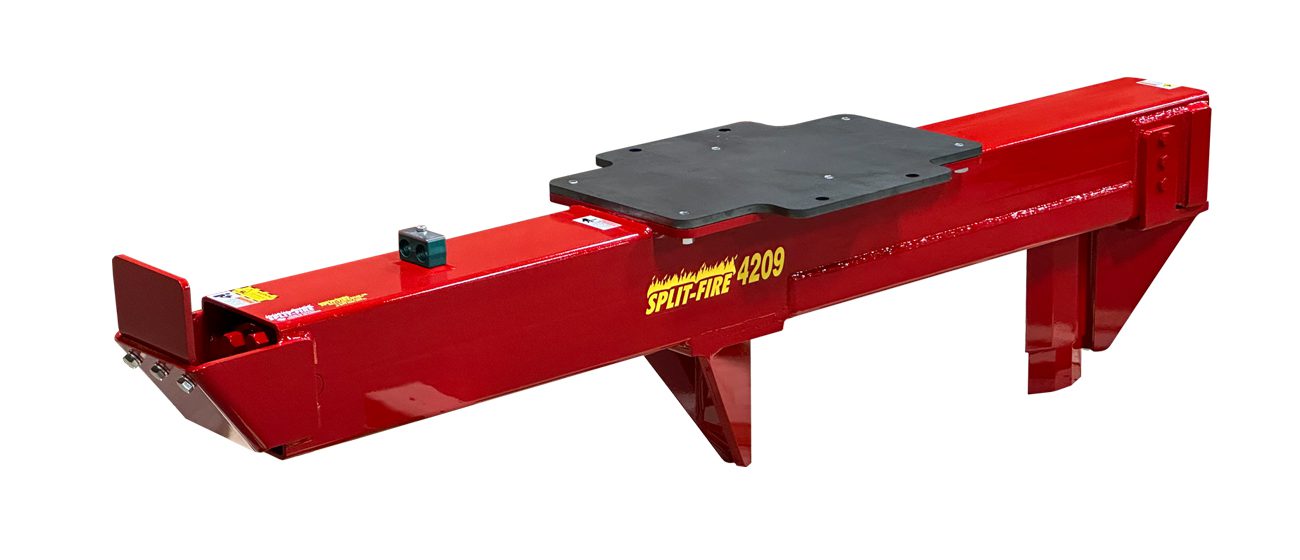

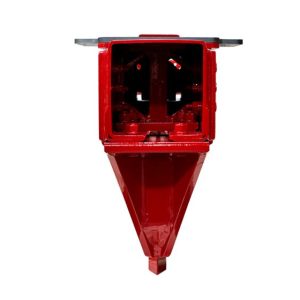

4209

$2,623.00

You can’t beat the moving power and speed an excavator has to offer when powering an excavator mount log splitter!! Whether you have a mini ex or a mid-sized excavator, and you need to split large logs, the Split-fire 4209 is the perfect fit. Literally a splitter at the end of your arm, you can easily pinch, move, toss, and split wood as needed. Without the need to move the machine like a skidsteer, and the Split-fire 2-way split, efficiency is at an all-time high with this setup.

Pushing 32 tons at 2900 PSI, the 4209 can be run on any excavator over 3 tons. With the operator working comfortably behind the controls, the 4209 offers great visibility and more than enough power to crack the largest knotty rounds. A good operator can simply swing around and split the wood directly into a bin or trailer. The ultimate setup for a pile of large logs that can’t simply be split by hand.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

3-4 Weeks Build Time

SEE IT IN ACTION

MACHINE SPECS

Frame
7" x 7" steel tube
Log Capacity
40" - 48" diameter
Tonnage
32 tons @ 2900 psi
Cycle Speed
Governed by excavator volume
Power Source
Excavator Attach | Includes 100" hoses
Pump
Excavator Pump Displacement
Reservoir
Excavator
Stroke Length
24"
Quick Connects
Not included
Overall Width
12"
Overall Length
76"
Overall Height
16"
Weight
430 lbs
Bed Height
Excavator Plates raise / lower
Knife Height
12"
Cylinder Size
4½” x 24"
Hydraulic Flow
8 gpm - 20 gpm
Total Cycle Time =
7.625(Stroke/GPM)

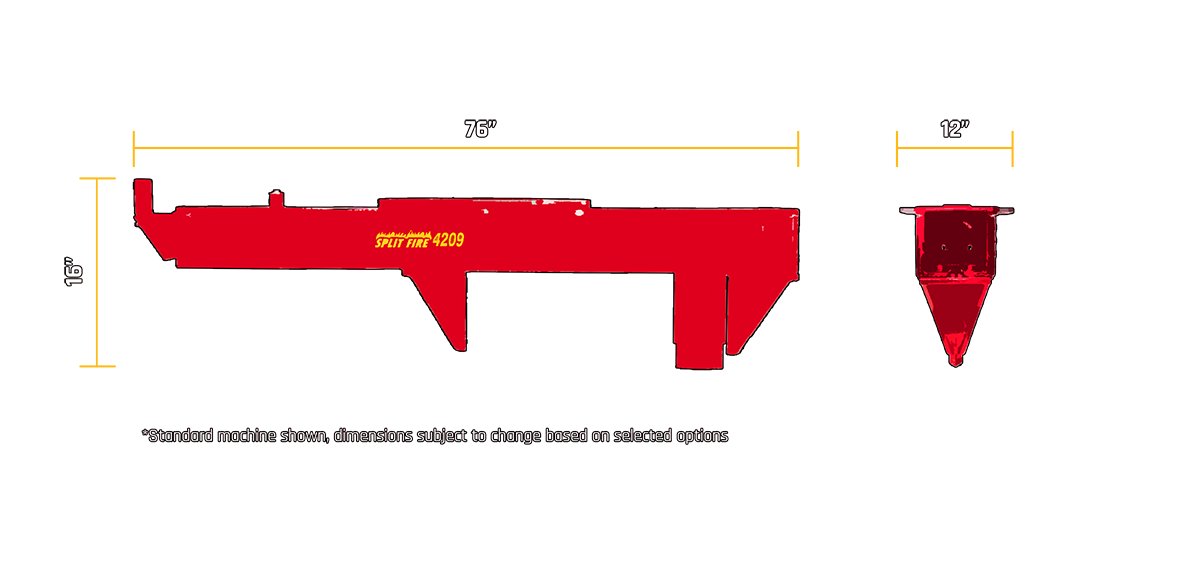

4209 technical drawing
