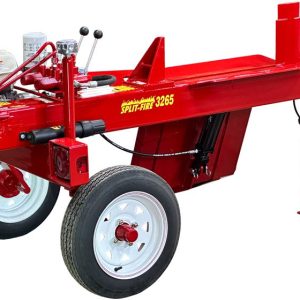

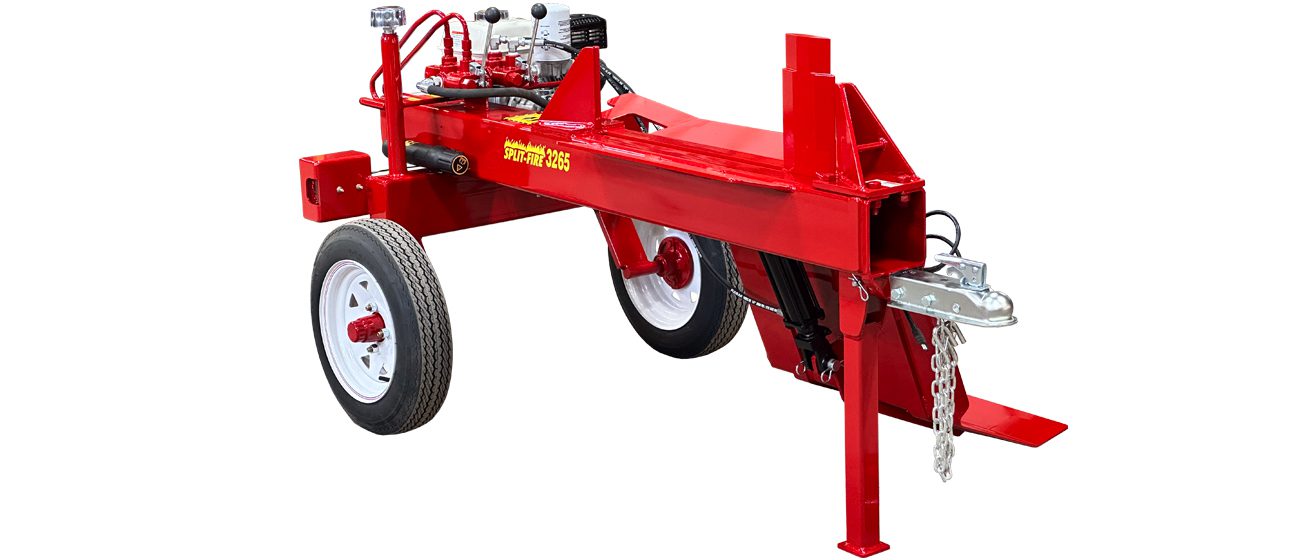

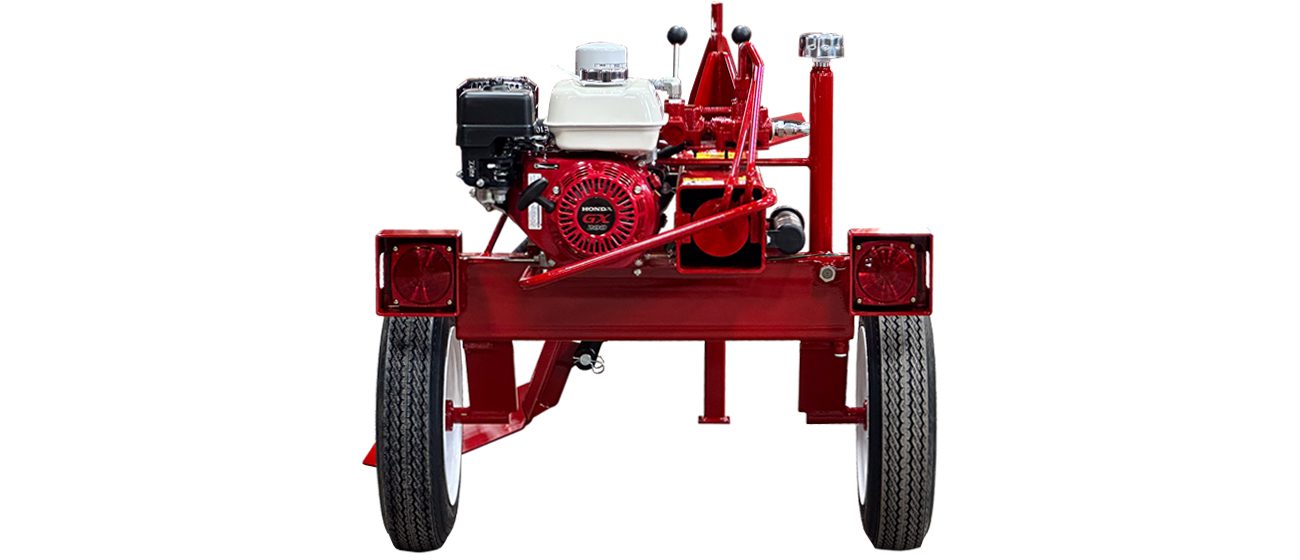

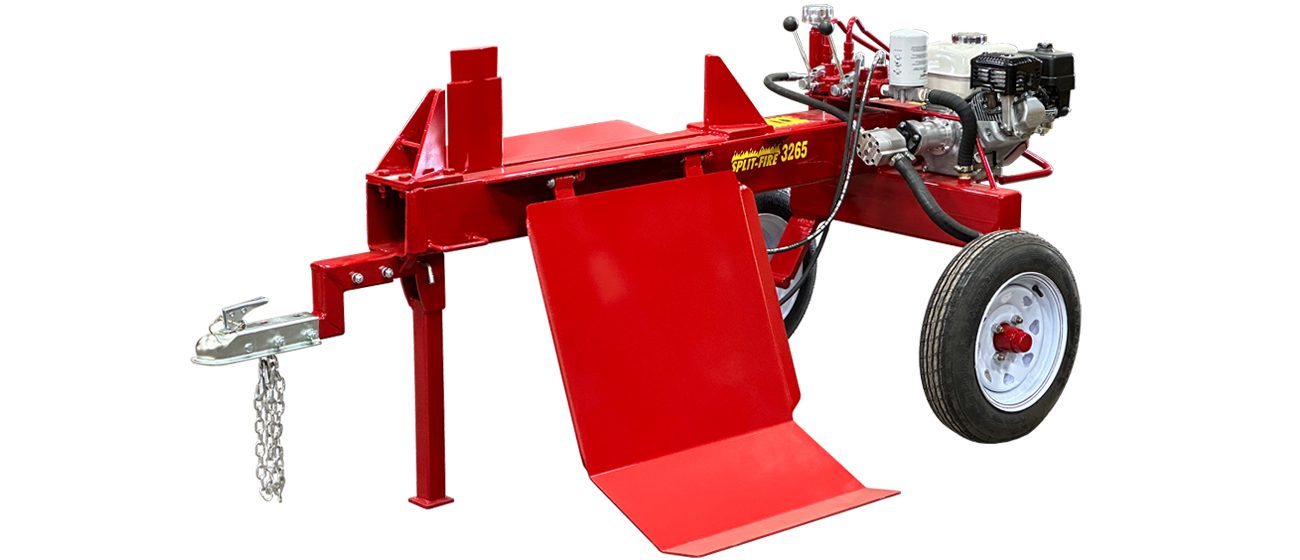

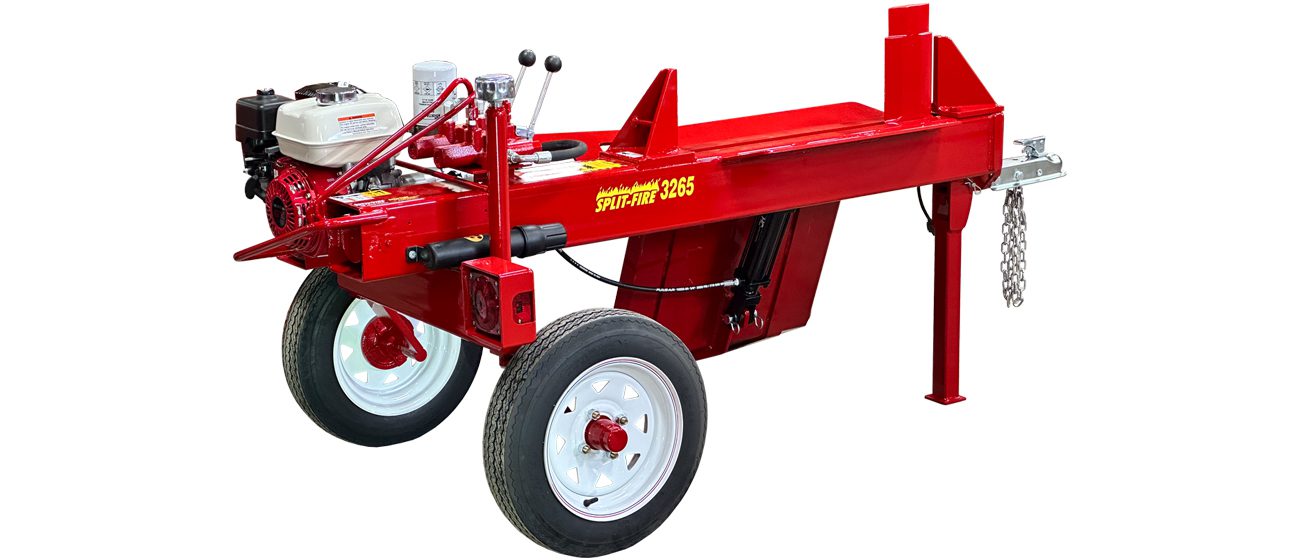

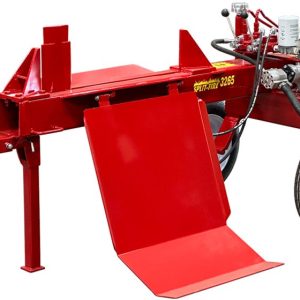

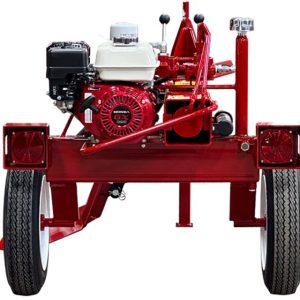

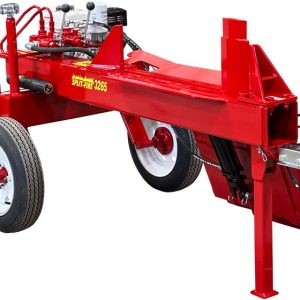

Log Splitter 3255/3265

The Split-fire 3255/3265 gas powered wood splitter is the industry standard for equipment rental shops across north America. It also fills the needs of medium farms and large estates that heat several buildings or feed an outdoor wood boiler.

Read More
  • Frame
    6" x 6" steel tube
  • Tonnage
    20 tons splitting force
  • Cycle Speed
    9 - 11 seconds
  • Power Source
    Honda GX 160 - 3255 | Honda GX 200 - 3265
  • Pump
    11 GPM low pressure | 2.7 GPM high pressure
  • Reservoir
    12.5 L
  • Stroke Length
    24"
  • Bed Width
    15"
  • Standard Hitch Size
    2" ball coupler
  • Overall Width
    40"
  • Overall Length
    84"
  • Overall Height
    34"
  • Weight
    440 lbs
  • Bed Height
    24"
  • Knife Height
    8"
  • Cylinder Size
    3½” x 24"
  • Tire Size
    4.80" x 8"
  1. Doran Hubley – Haliburton, ON

    My old Split-Fire has been a great machine!

    Uploaded image(s):

    Image #1 from Doran Hubley - Haliburton, ON
  2. Rob Ryan – Durham, ME

    I’ve split hundreds of cords of wood with the machine over the last 15 years. Very reliable and excellent design. It’s a joy to use, one of the best equipment purchases I’ve ever made.

    Uploaded image(s):

    Image #1 from Rob Ryan - Durham, ME
  3. Don Metz – Kirkville, NY

    This machine is awesome, I use it all the time and everyone who sees it wants to buy it, my answer is you can’t afford it. Keep up the good work!

    Uploaded image(s):

    Image #1 from Don Metz - Kirkville, NY
    Image #2 from Don Metz - Kirkville, NY
  4. Bill Dawson – Bolton, ON

    Very pleased with my Split-Fire firewood splitter purchase to date. There was a small hiccup within the first couple hours of use but the team at Split-Fire had that sorted in short time. Since then I have run a decent amount of wood through it and it has performed flawlessly. Thanks again for great service and product!

  5. Brian Grant – Grant Rentals – Bridgewater, MA

    We have purchased three 3255 log splitters. Being able to split on both strokes is a great selling feature because it’s easy to tell people that production is doubled. The Split-Fire is a great revenue builder for our business – people keep coming back for the red log splitters!

    Uploaded image(s):

    Image #1 from Brian Grant - Grant Rentals - Bridgewater, MA
  6. Dan Lutz – Manager

    We have had 2 of these units in our rental fleet now for over 10 years with next to no problems.

  7. Steve Jane Hanscome – Paxton, MA

    We have been busy splitting wood and the splitter is just great. We love it.

    Uploaded image(s):

    Image #1 from Steve Jane Hanscome - Paxton, MA
  8. Rand Bertoch – Baxter, MN

    Thanks for all the great support you have given me in getting my Splitter up and going again. Your company is one of the best or the BEST for customer support that I have ever had the pleasure of doing business with hands down.

    Uploaded image(s):

    Image #1 from Rand Bertoch - Baxter, MN
  • Honda Engine Upgrade GX 200

  • 36″ Extended Stroke

  • Log Table

  • Hydraulic Log Lifter

  • Big Wheel Kit 12” Tire (Standard 24” Bed Height)

  • 4” Lift 12” Tire (28” Bed Height)

  • 8” Lift 13” Tire (32” Bed Height)

  • 4” Log Lifter Extension

  • 8” Log Lifter Extension

  • 24” Nose Extension

  • 4″ Drop Hitch

  • 8″ Drop Hitch

  • Swivel Jack

  • Fenders

  • Heavy Duty Rubber Ride Suspension

  • TOW CONFIGURATION *

    • 0 $
    • 211 $

    ENGINE *

    • 0 $
    • 155 $

    STROKE LENGTH *

    • 0 $
    • 471 $

    LOG LIFTER & TABLE

    Select Stroke Length to Unlock Options

    • 0 $
    • 175 $
    • 778 $
    • 848 $

    BED HEIGHT & TIRE

    Select Highway Towable to Unlock Options

    • 0 $
    • 80 $
    • 171 $
    • 315 $

    LOG LIFTER EXTENSION

    Select 4″ or 8″ Lift to Unlock Options

    • 76 $
    • 174 $

    OPTIONS

    • 54 $
    • 83 $
    • 95 $
    • 163 $
    • 442 $
    • 462 $
    • 584 $
