• Horizontal Wood Chipper 4090

Horizontal Wood Chipper 4090
4
4" Chipping Diameter
Reversible Chipping Blades
Reversible Chipping Blades
Extended Infeed Chute Designed for Safety
Extended Infeed Chute Designed for Safety
Designed For Easy Maintenance
Designed For Easy Maintenance
Compact Design
Compact Design

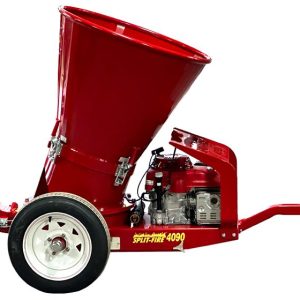

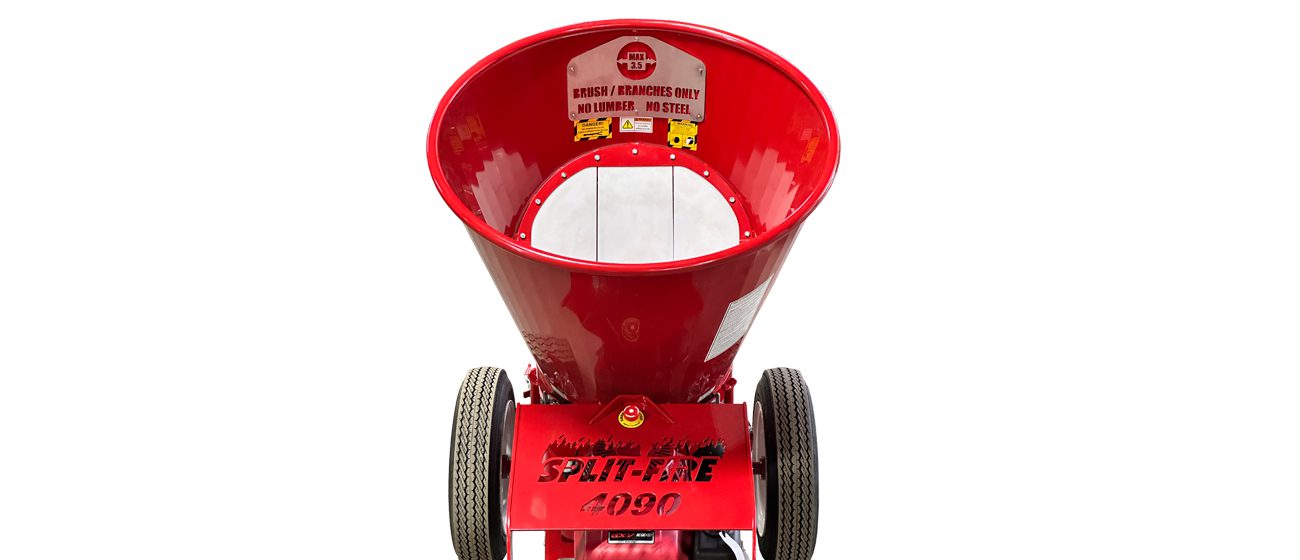

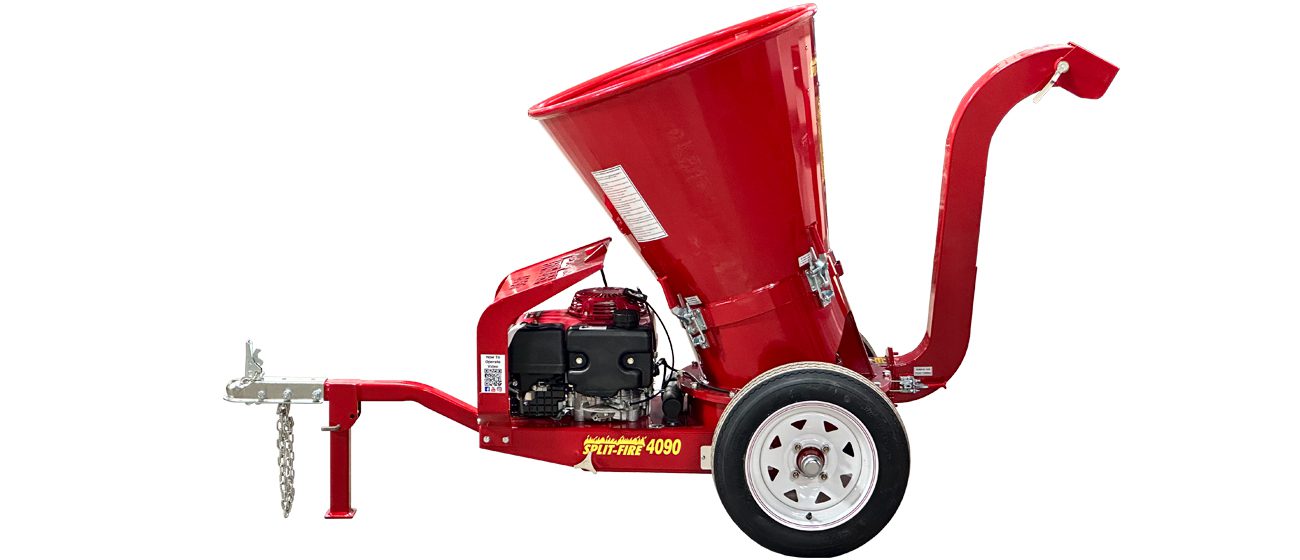

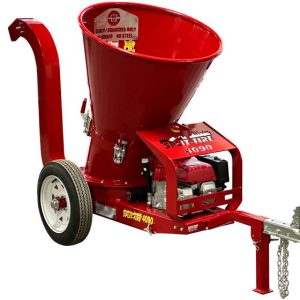

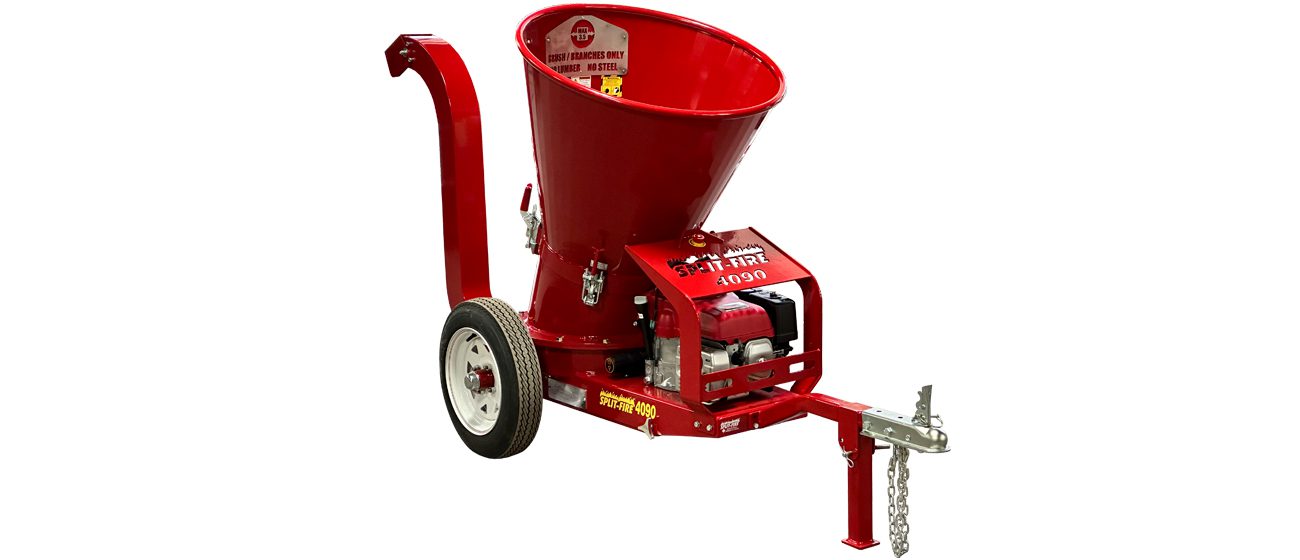

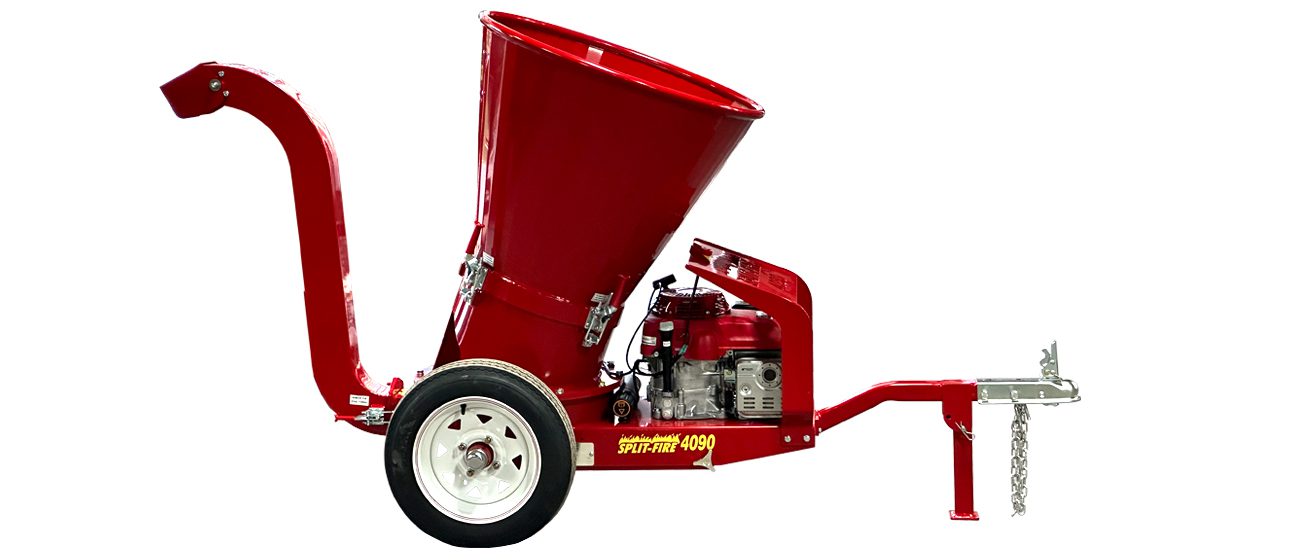

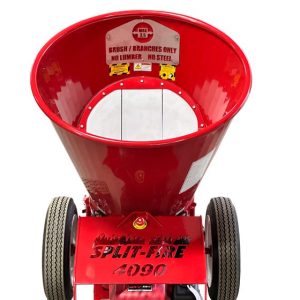

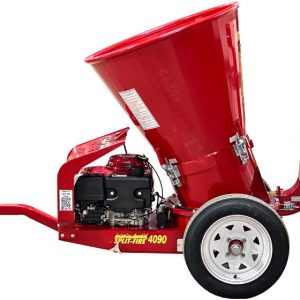

Horizontal Wood Chipper 4090

Okay with unconventional? The Split-fire 4090 rethinks woodchipper design, and has been specifically designed for safety, ease of use and productivity. The innovative design is paired with a heavy build. Fitted with a 100 lbs. rotor and 3/8” chipping box the 4090 woodchipper is effective for branches and limbs up to 4”. Reduce most pre-trimming and cutting as the rotor opening gapes past 6” to accept leafy and Y shaped branches with ease.

Read More
  • Chipper Box
    3/8" Plate
  • Infeed Chute
    12 ga. steel
  • Max Diameter
    4"
  • Power Source
    Honda GXV 390 | Kohler CV 224
  • Chip Size
    1/2" – 3/4"
  • Rotor Diameter
    19 1/2"
  • Rotor Weight
    100 lbs
  • Knives
    2 Blade | 7 1/4" x 2 3/4" x 7/16"
  • Hitch Size
    2" Ball
  • Final Drive
    Centrifugal Clutch
  • Infeed Chute Width
    32" wide
  • Infeed Chute Depth
    36 1/2" deep
  • Blade Opening
    110 sq inches
  • Overall Width
    34"
  • Overall Length
    73"
  • Overall Height
    52"
  • Weight
    550 lbs
  • Self-Feeding
    Yes
  • Finish
    Powder coated
  • Bed Knife
    Adjustable
  • Tire Size
    4.80" x 8"
  1. Db Trail Blazers – Priceville, ON

    Ooh we are excited to add this beauty of a beast to our tool team. The Split-Fire 4090 is a super trail worthy woodchipper we have been eying up for a while now. Everything is quality and built to work. @split_fire_sales top notch design all around.

    Uploaded image(s):

    Image #1 from Db Trail Blazers - Priceville, ON
  2. Jim Greenfield – Hamilton, MT

    The machine is a beast, and I enjoy the way it performs without effort. The design and quality are impressive and I look forward to making more child’s play out of work that used to be drudgery. I have more people lined up that want my chips than I can keep up with!

  3. William Lawrence – Eagle, OR

    The chipper arrived in Oregon on time even with all the cold and snow across the country.  It really chips the pine, cedar and fir trees we have around here. It was ready to go to work right off the truck. It’s great for the type of trees we have. I’m learning how to prep the hardwoods for ease of chipping too. It’s great to be able to run the chipper in the early part of our fire season when piling for fall burning is all I can do. No more of that, I can cut, chip and walk away and it’s all done. The chips are and added bonus for use around the barn yard.

    Uploaded image(s):

    Image #1 from William Lawrence - Eagle, OR
    Image #2 from William Lawrence - Eagle, OR
    Image #3 from William Lawrence - Eagle, OR
  4. Jim Zawilenski – Wild Rose, WI

    Excellent build quality and an absolute powerhouse. Well worth the money. The large chute opening is great, and the paint job really takes a beating and still looks amazing. It’s perfect for all of the work we need done at our family’s property

    Uploaded image(s):

    Image #1 from Jim Zawilenski - Wild Rose, WI
  5. Diane Florence – Atlin, BC

    The chipper works as well as we expected and does the modified shipping create made into a chip collection and dumping box.

    Uploaded image(s):

    Image #1 from Diane Florence - Atlin, BC
  • Steel Discharge Chute

  • Rear Hitch

  • Caster Wheel

  • Rental Clutch

  • 8″ Heavy Duty Tire / 4-Bolt Hub

  • 12″ Heavy Duty Tire / 4 Bolt Hub

  • Fenders & Lights

  • OPTIONS

    • 207 $
    • 60 $
    • 95 $
    • 378 $

    TIRES

    • 0 $
    • 86 $
    • 150 $

    FENDERS

    • 288 $
    • 329 $
