4″ Chipping Diameter
4″ Chipping Diameter
Reversible Chipping Blades
Reversible Chipping Blades
Extended Infeed Chute for Safety
Extended Infeed Chute for Safety
Designed For Easy Maintenance
Designed For Easy Maintenance
Compact Format
Compact Format

4003

$3,885.00

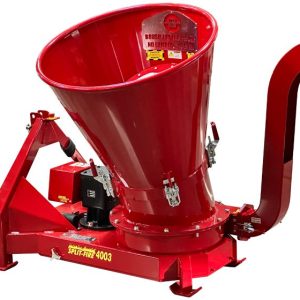

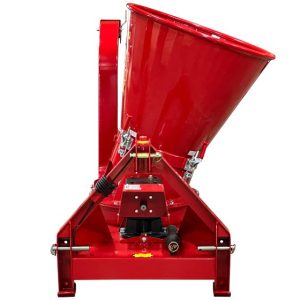

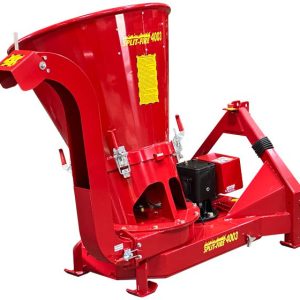

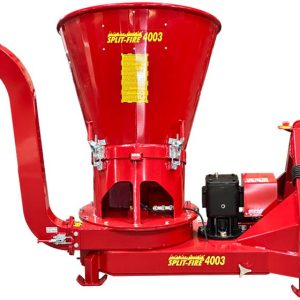

The Split-fire 4003 rethinks 3 PT Hitch wood chipper design. Designed for yard maintenance, farm or commercial use, this chipper is designed for safety, ease of use and productivity. With 3 available setup positions for the infeed and exhaust chutes, the 4003 can be configured to perfectly fit your needs. Fitted with a heavy-duty gearbox, a 100 lbs rotor and 3/8” steel plate chipping box the 4003 wood chipper is effective for branches and limbs up to 4”. Reduce most pre-trimming as the rotor opening gapes past 6” to accept leafy and Y shaped branches with ease.

The 4003 is a great option for any compact or mid frame tractor. Built for tractors in the 20 hp – 80 hp range, this chipper fully utilizes all that power and torque. The category 1 & 2, 3 Point hitch configuration will allow you to easily hookup and go. Several options are available to allow you to configure the chipper specifically for your needs. How-To YouTube videos allow for quick and easy servicing. Since the 4003 is a 3PT Hitch attachment minimal servicing is required. This is a quality attachment that will perform and will stand the test of time. Turn branches from yard waste into valuable mulch for your gardens and trails.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

4-5 Weeks Build Time

SEE IT IN ACTION

VIEW MORE VIDEOS →

MACHINE SPECS

Chipper Box
3/8" Plate
Infeed Chute
14 ga. steel
Max Diameter
4"
Power Source
540 PTO 20-80 HP
Chip Size
1/2" – 3/4"
Rotor Diameter
19 1/2"
Rotor Weight
100 lbs
Knives
2 Blade | 7 1/4" x 2 3/4" x 7/16"
Infeed Chute Width
32" wide
Infeed Chute Depth
36 1/2" deep
Blade Opening
110 sq inches
Overall Width
31 1/4"
Overall Length
45"
Overall Height
51 1/4"
Weight
600 lbs
Self-Feeding
Yes
Finish
Powder coated
Bed Knife
Adjustable

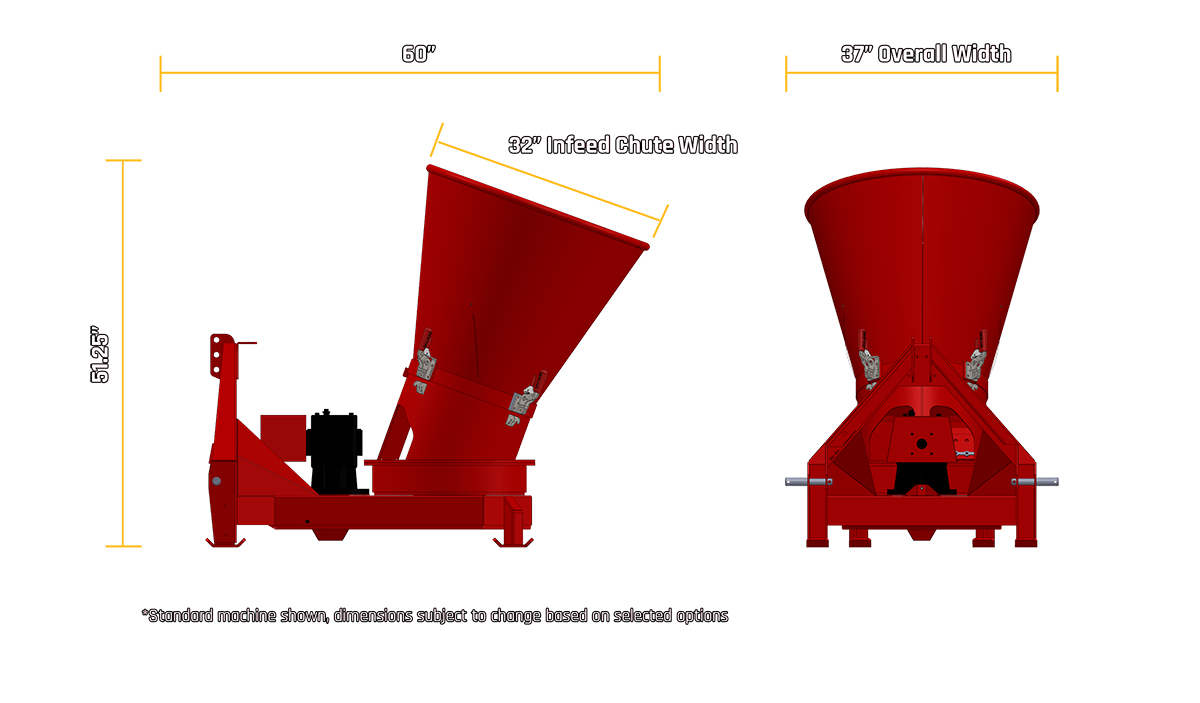

4003 technical drawing
