32 Ton Rated
32 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
Extended Stroke Options
Extended Stroke Options
4.5 Second Cycle Time
4.5 Second Cycle Time

Split Wood Twice as Fast – No Waiting Between Cycles

Less time, less effort, more wood. Built for serious homeowners and pros.

4206

$2,538.00

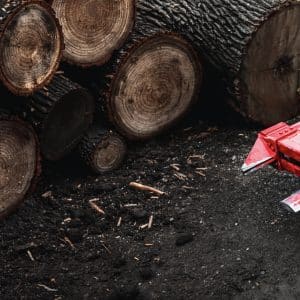

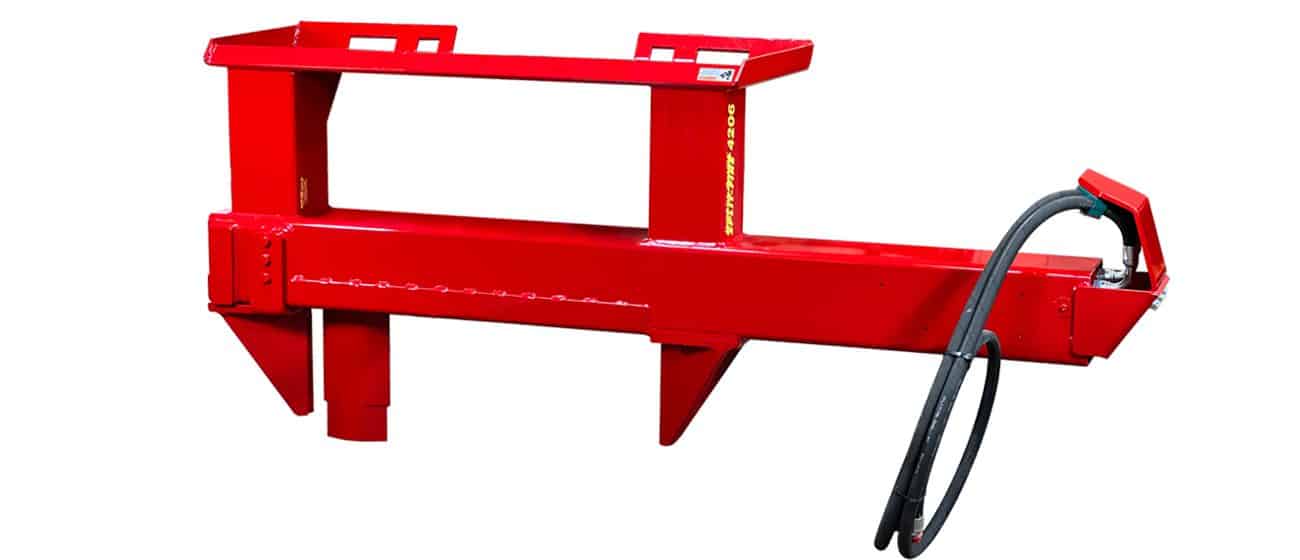

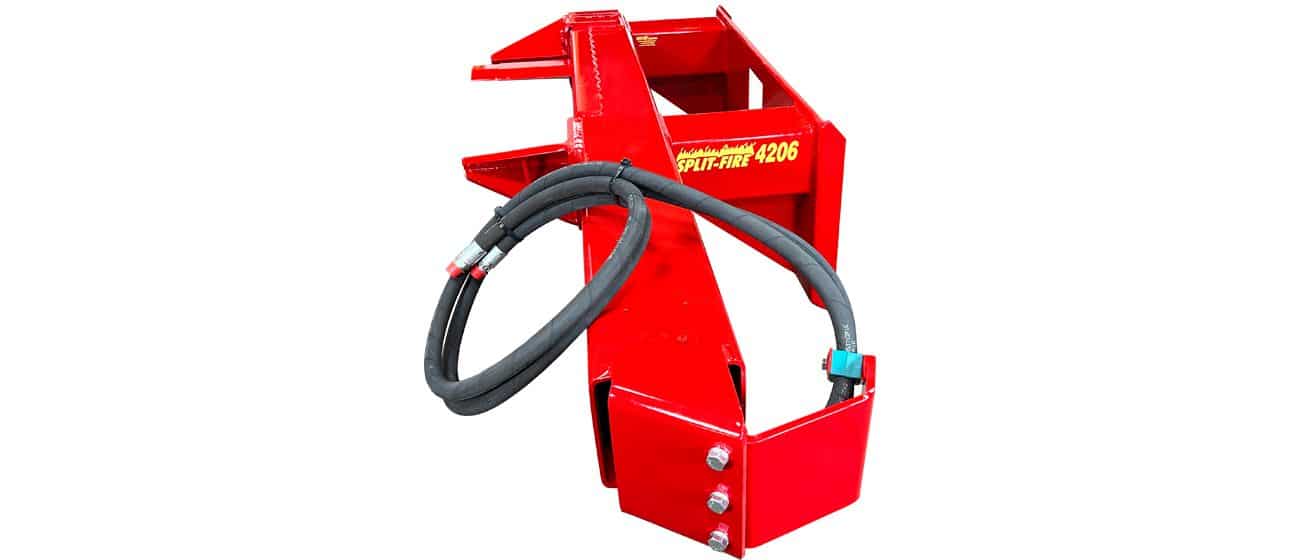

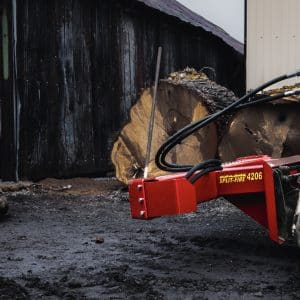

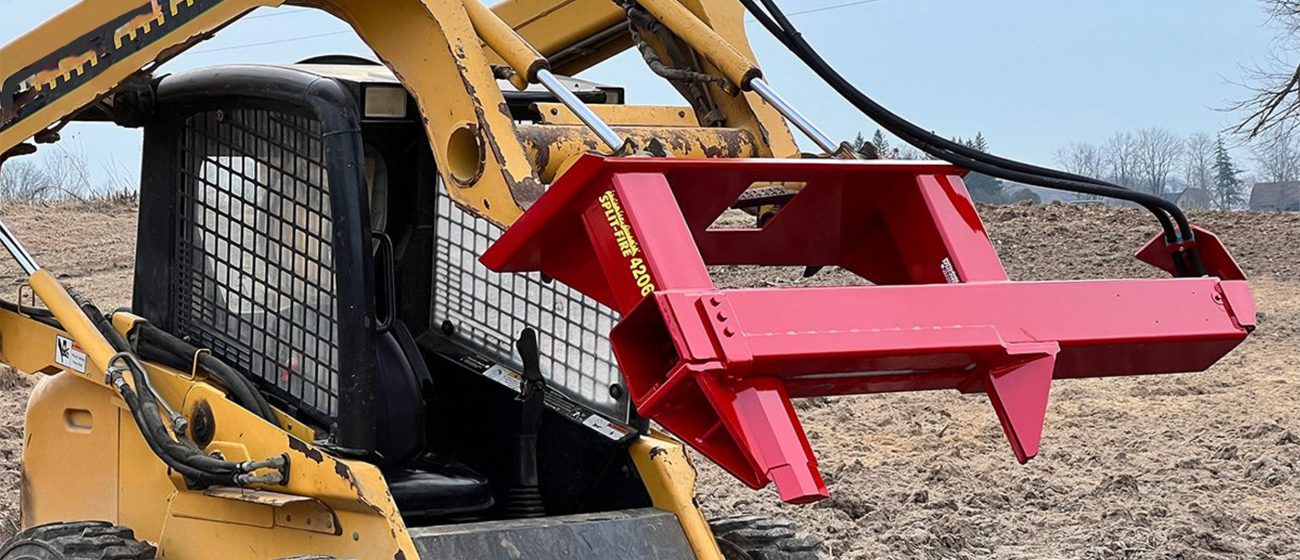

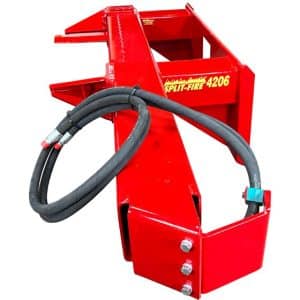

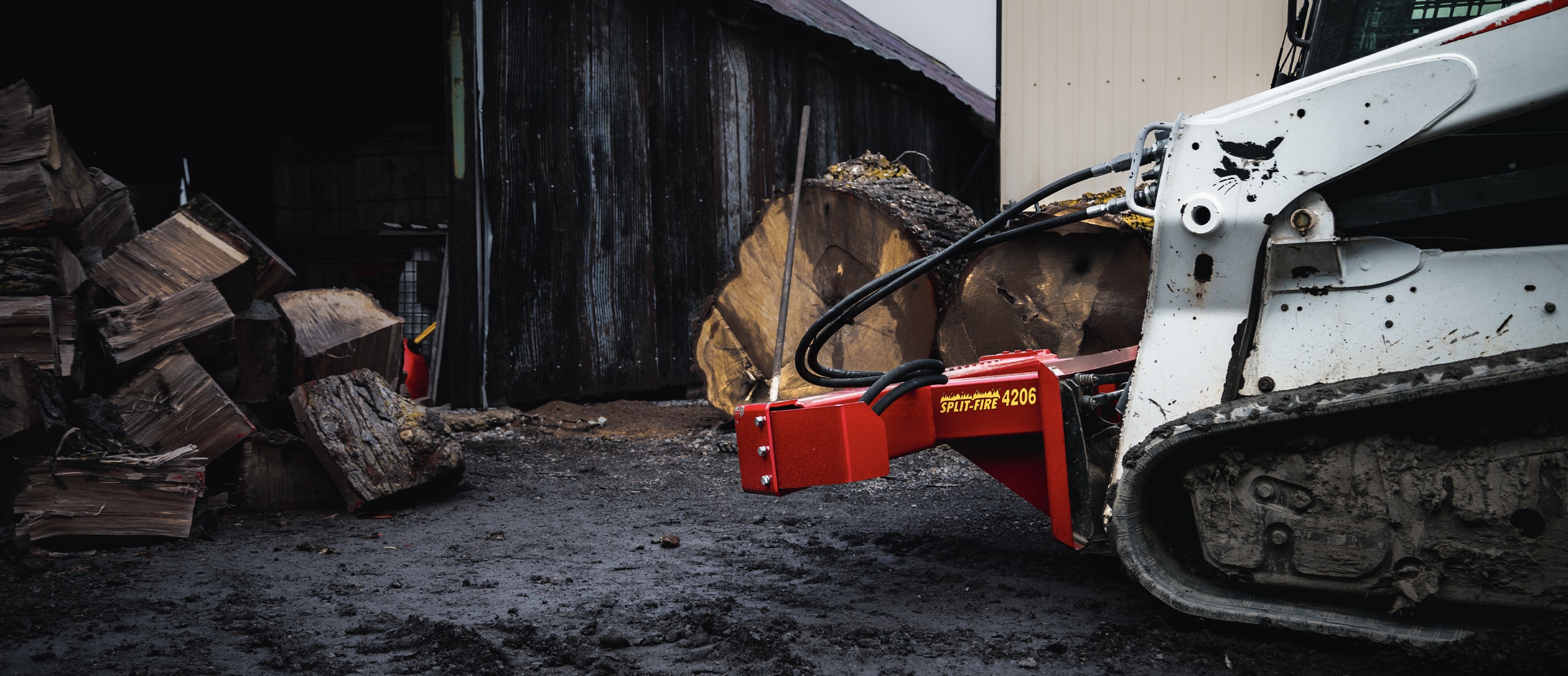

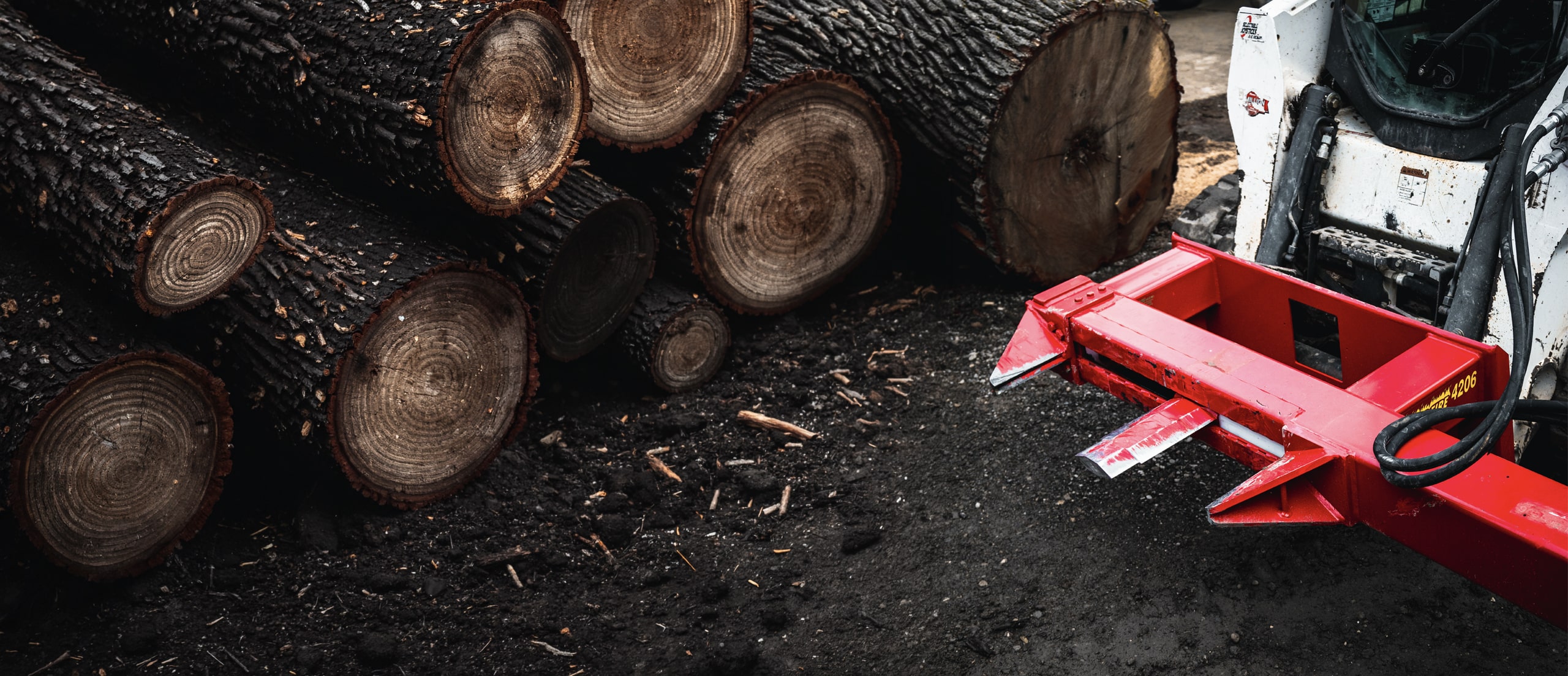

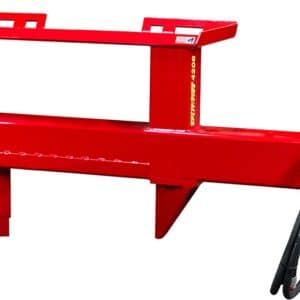

With the Split-Fire 4206 cross-mounted log splitter, your mini-skid or full-sized skid-steer can tackle massive 48”+ logs easily and safely. The cross-mounted design puts the splitting zone directly in front of the cab for perfect visibility, and allows you to attack logs from multiple angles, while the internally-located cylinder and heavy-duty steel plate bumper means you don’t need to worry about being gentle; this machine can handle bouncing off a log or the side of a barn without any danger to the hoses or mechanical components.

The 4206 uses self-lubricating UHMW slide pads, and since all the hydraulics are supplied by your loader, it is a zero-maintenance machine. With 32 tons rated splitting force at 2900 PSI, this splitter is designed to get through huge, knotty logs with ease, and an effective cycle time of 4.5 seconds at 20 GPM thanks to Split-Fire’s signature 2-way wedge design means that it works with twice the efficiency of a conventional push-through splitter.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

3-4 Weeks Build Time

SEE IT IN ACTION

MACHINE SPECS

Frame
7" x 7" steel tube
Log Capacity
30" - 48" diameter
Tonnage
32 tons @ 2900 psi
Cycle Speed
9 sec. extend and return stroke @ 20 GPM | 15 sec. @ 12 GPM | 23 sec. @ 8 GPM
Power Source
Skid Steer Attach | Includes 5' of hose
Pump
Skid Steer Pump Displacement
Reservoir
Skid Steer
Stroke Length
24"- 48”
Quick Connects
Optional
Overall Width
76"
Overall Length
33"
Overall Height
18½"
Weight
460 lbs
Bed Height
Skid Steer Plates raise / Lower /Tilt
Knife Height
9"
Cylinder Size
4½” x 24"
Hydraulic Flow
8 GPM - 20 GPM

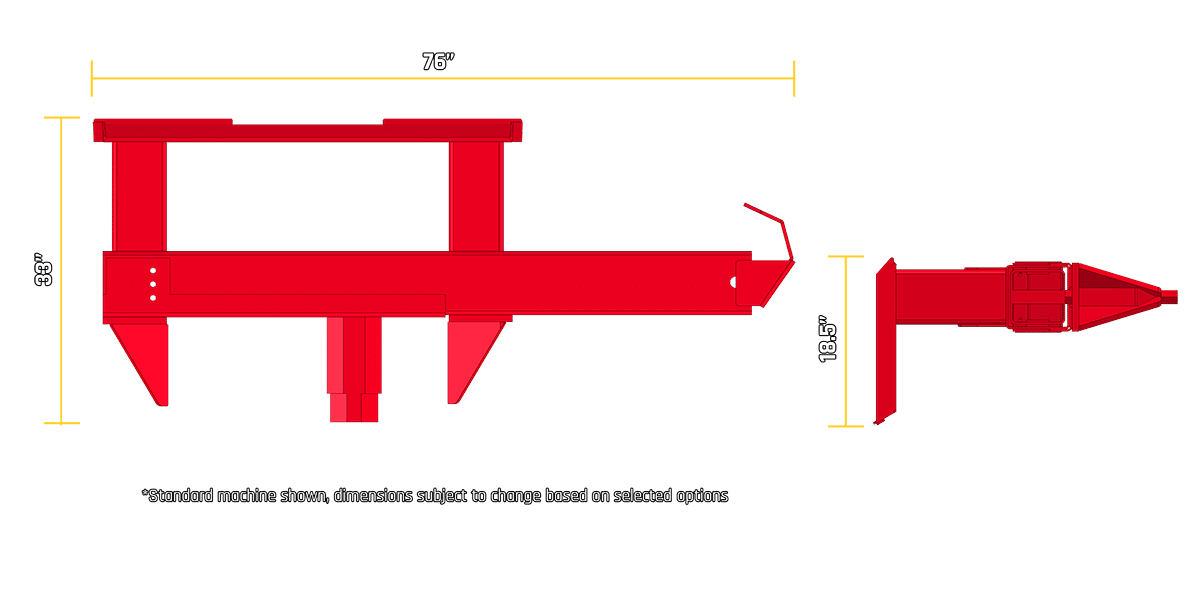

4206 technical drawing
