32 Ton Rated
32 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
Extended Stroke Options
Extended Stroke Options
4.5 Second Cycle Time
4.5 Second Cycle Time

Split Wood Twice as Fast – No Waiting Between Cycles

Less time, less effort, more wood. Built for serious homeowners and pros.

4208

$2,611.00

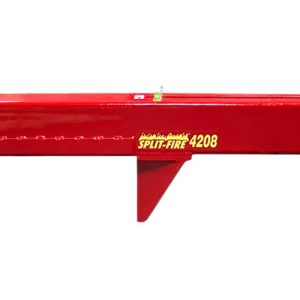

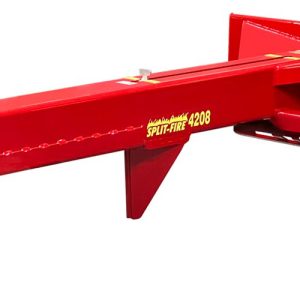

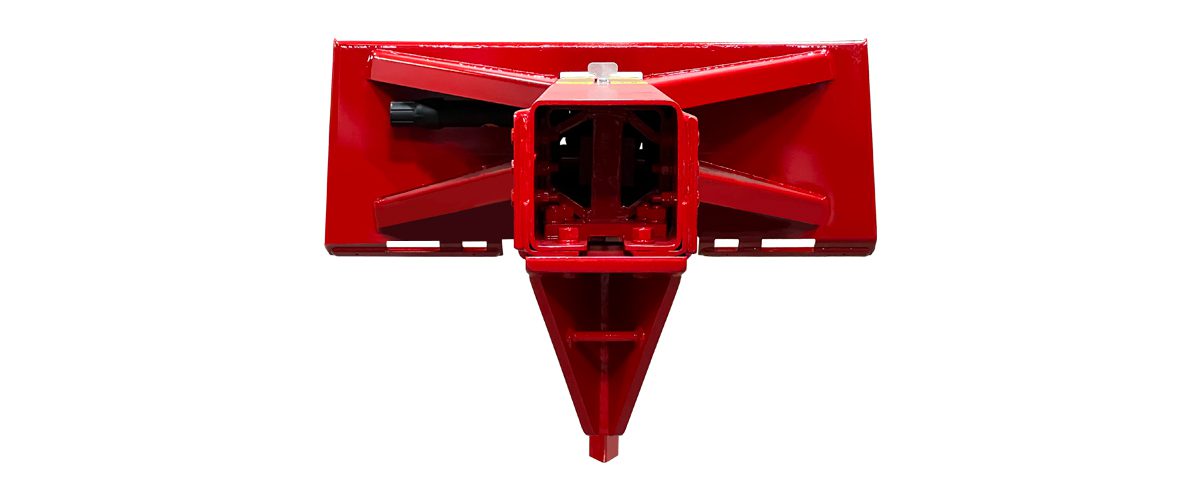

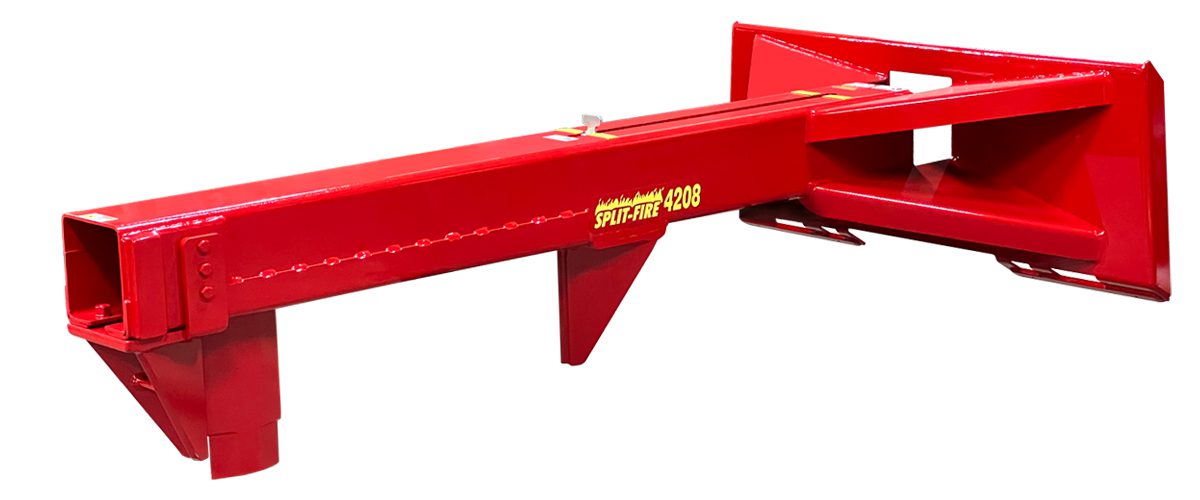

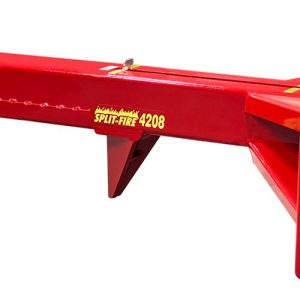

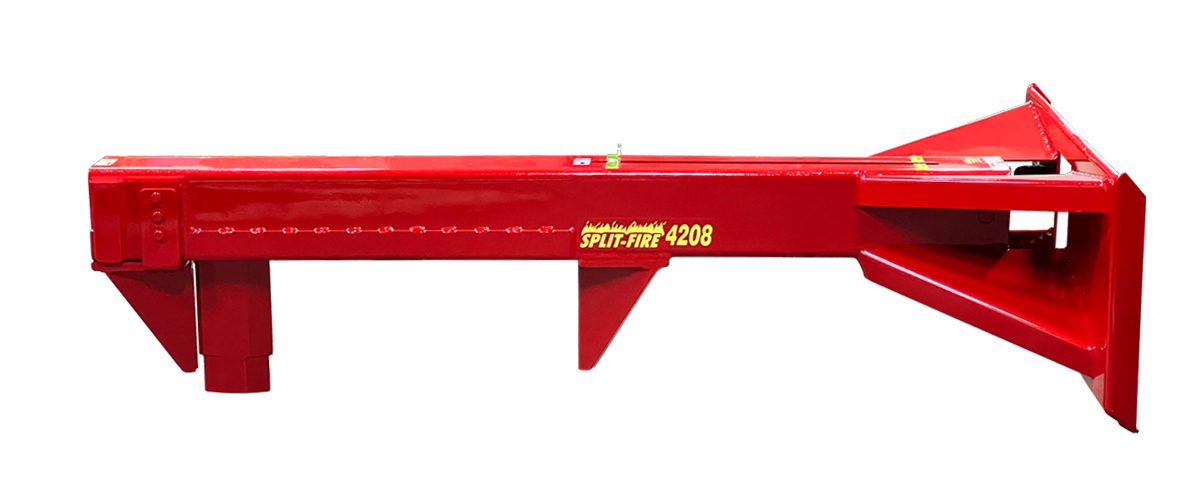

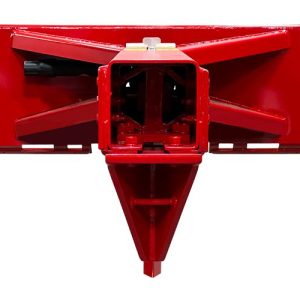

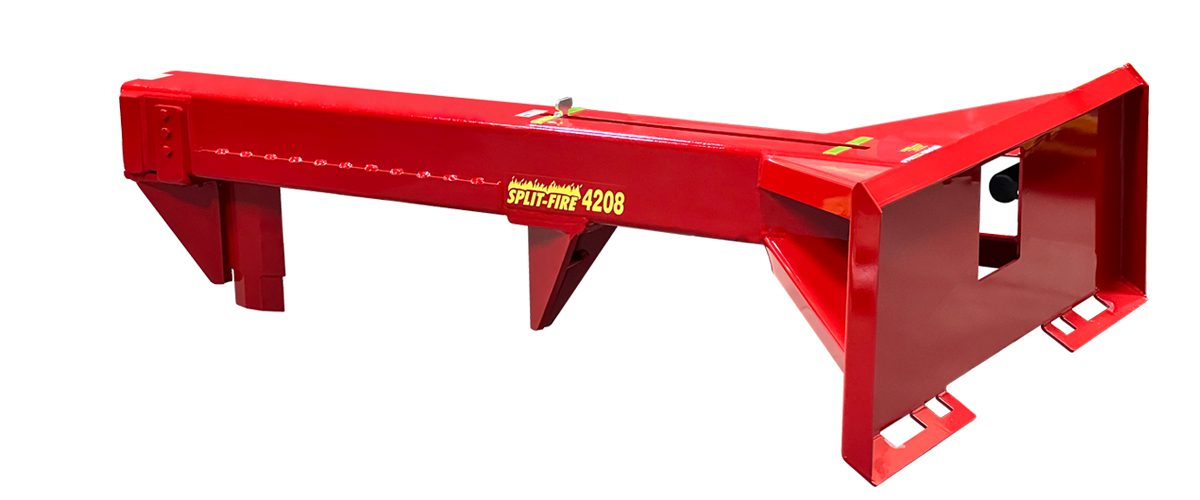

Log Splitter 4208

Whether it’s pouring rain on a humid summer day or blowing snow on a freezing winter day, the Split-Fire 4208 inverted skid-steer log splitter is designed to help you split those large unmanageable logs from the comfort of your cab.

This wood splitter mounts on mid-size and larger skid-steer loaders in the inverted position, grabbing oversized rounds straight off the ground from above and eliminating heavy manual lifting. As operator, you control the splitting action entirely from the comfort of your seat, breaking down large and gnarly rounds to size for an outdoor wood boiler or for further processing with a smaller and more precise splitter. Pushing a rated 32 tons of splitting force at 2900 PSI with an effective 4.5 second cycle time at 20 GPM, the 4208 takes all fluid and power from your loader, which, along with its self-lubricating UHMW slide pads, makes it a maintenance-free machine. Options including multiple stroke lengths allow you to customize to suit exactly the wood that you have to split.

Don’t let valuable wood rot in a pile or ravine, the Split-Fire 4208 will turn it into usable fuel with ease.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

3-4 Weeks Build Time

SEE IT IN ACTION

MACHINE SPECS

Frame
7" x 7" Steel Tube
Log Capacity
40" - 48" Diameter
Cycle Time
9 Sec. Extend and Return Stroke @ 20 GPM | 15 Sec. @ 12 GPM
Tonnage
32 Tons @ 2900 PSI
Cycle Time =
7.625(Stroke/GPM)
Power Source
Skid Steer Attach | Includes 5' of Hose
Pump
Skid Steer Pump Displacement
Reservoir
Skid Steer
Stroke Length
24"
Connections
1/2" NPT
Overall Width
47"
Overall Length
76"
Overall Height
18.5"
Weight
460 lb.
Knife Height
12"
Cylinder Size
4.5” x 24"
Hydraulic Flow
8 GPM - 20 GPM
4208 technical drawing
