32 Ton Rated
32 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
Extended Stroke Options
Extended Stroke Options
Log Lifter Compatible
Log Lifter Compatible
11-13 Second Cycle Time
11-13 Second Cycle Time

Split Wood Twice as Fast – No Waiting Between Cycles

Less time, less effort, more wood. Built for serious homeowners and pros.

4207

$2,763.00

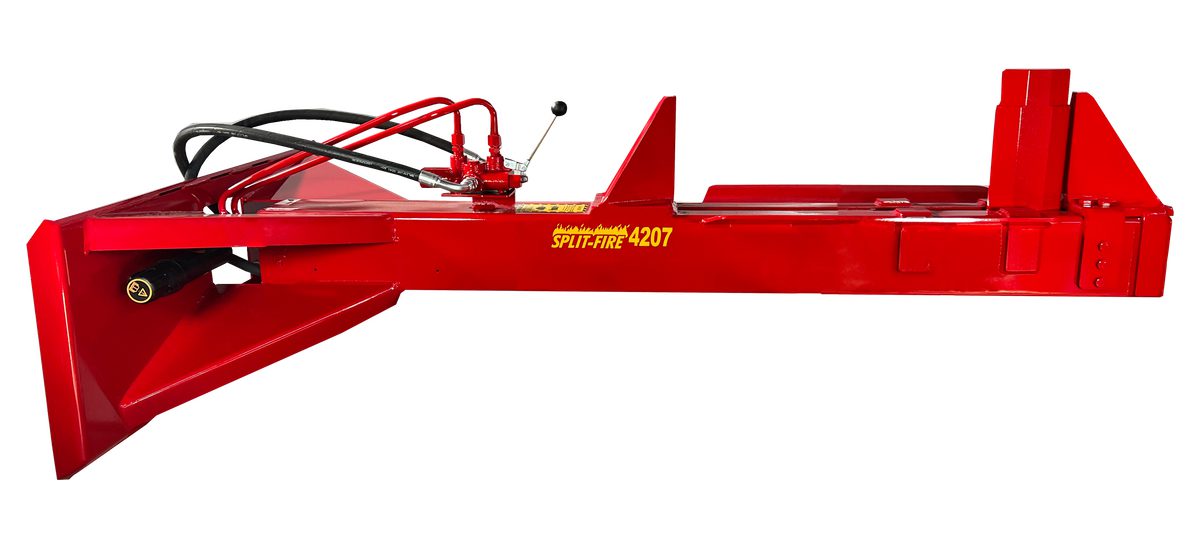

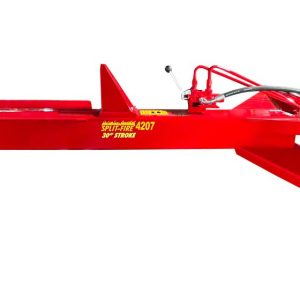

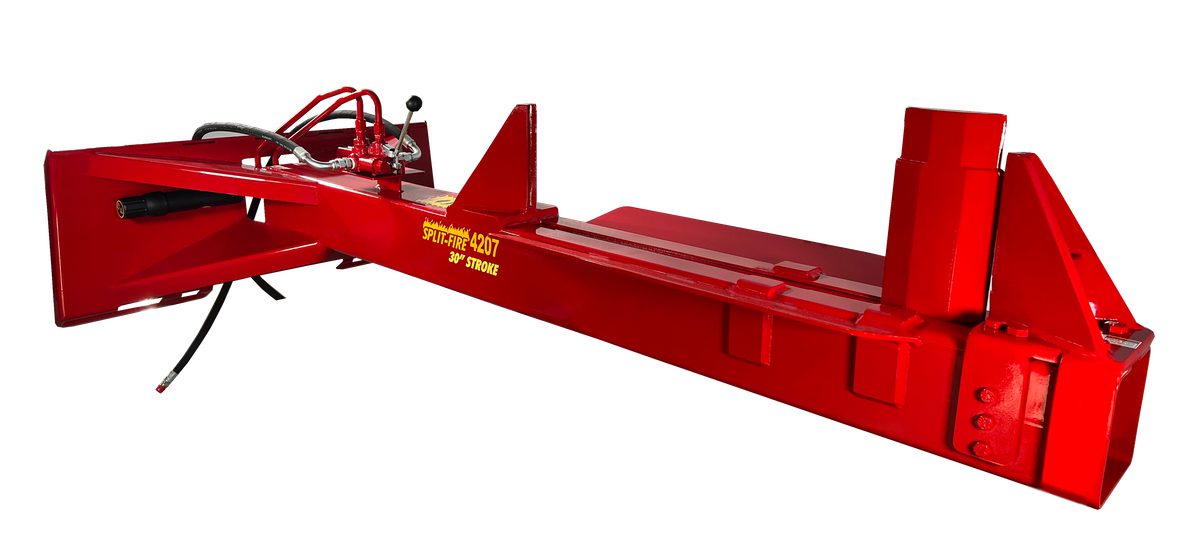

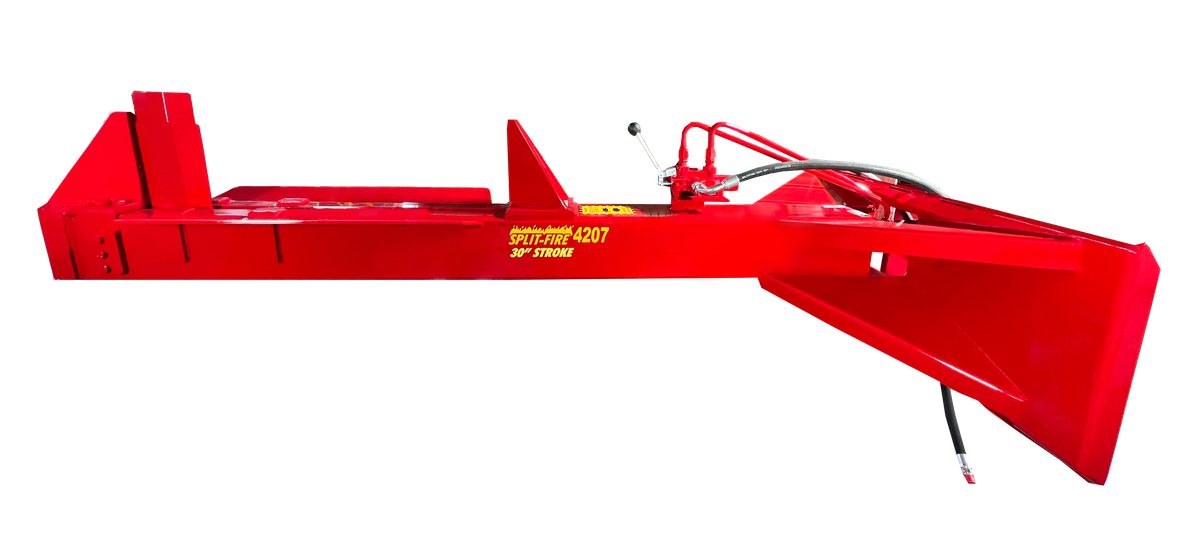

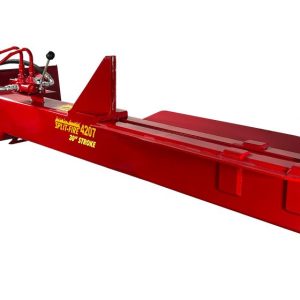

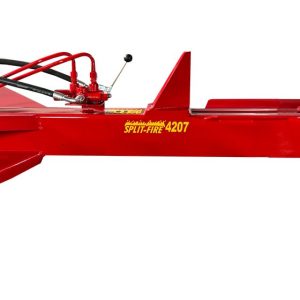

The 4207 is a great machine for splitting large gnarly rounds. Whether you are splitting gnarly treeline wood or large arborist drop-offs, the 4207 will split them all. Pushing 32 tons @ 2900 PSI, some smaller and all medium and large skidsteers can power this machine at fast cycle times.

Build to withstand regular abuse, the 4207 skid steer log splitter is a tough machine that is maintenance free as all fluid and power is supplied by the skidsteer. Add some weld-on options, and you’ll have a machine that fits your specific needs perfectly. There are many happy customers splitting logs year after year without having to touch this log splitter attachment.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

3-4 Weeks Build Time

MACHINE SPECS

Frame
7" x 7" steel tube
Tonnage
32 tons @ 2900 psi
Cycle Speed
9 sec. @ 20 GPM | 15 sec. @ 12 GPM | 23 sec. @ 8 GPM
Power Source
Skid Steer Attach Includes 5' of hose
Pump
Skid Steer Pump Displacement
Reservoir
Skid Steer
Stroke Length
24"
Bed Width
16"
Quick Connects
Not included
Overall Width
47"
Overall Length
76"
Overall Height
18½"
Weight
500 lbs
Bed Height
Skid Steer Plates raise / lower
Knife Height
12"
Cylinder Size
4½” x 24"
Hydraulic Flow
8 gpm - 20 gpm
Total Cycle Time =
7.625(Stroke/GPM)
4207 technical drawing
