• 1165

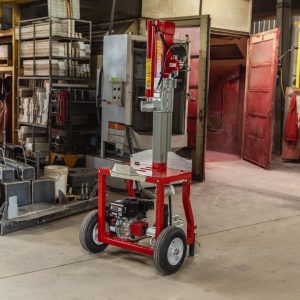

1165 log splitter in use
10 Ton Rated
10 Ton Rated
Push Through Design
Push Through Design
Auto Retract Cycle
Auto Retract Cycle
Compact Storage
Compact Storage
4 Second Cycle Time
4 Second Cycle Time

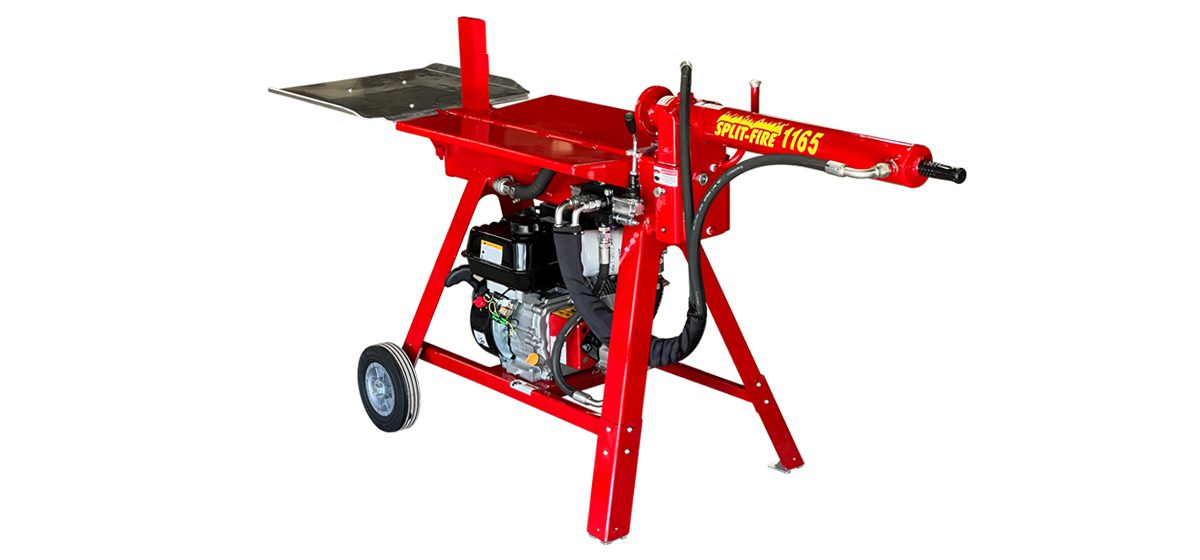

Log Splitter 1165

Compact. Efficient. Durable. The 1165 is a quality tool that is perfect for feeding your summer campfires and processing your winters worth of firewood. This log splitter is ergonomic, and the quick cycle time and auto return won’t keep you waiting. With 3 power options to choose from, including electric, this log splitter will be a perfect fit for your needs. When your done, take advantage of its design, fold it up and slip it away into the corner of your garage or shed.

Read More
  • Frame
    4" x 6" steel tube
  • Tonnage
    10 tons splitting force
  • Cycle Speed
    4 seconds | 5 Seconds Electric Motor Option

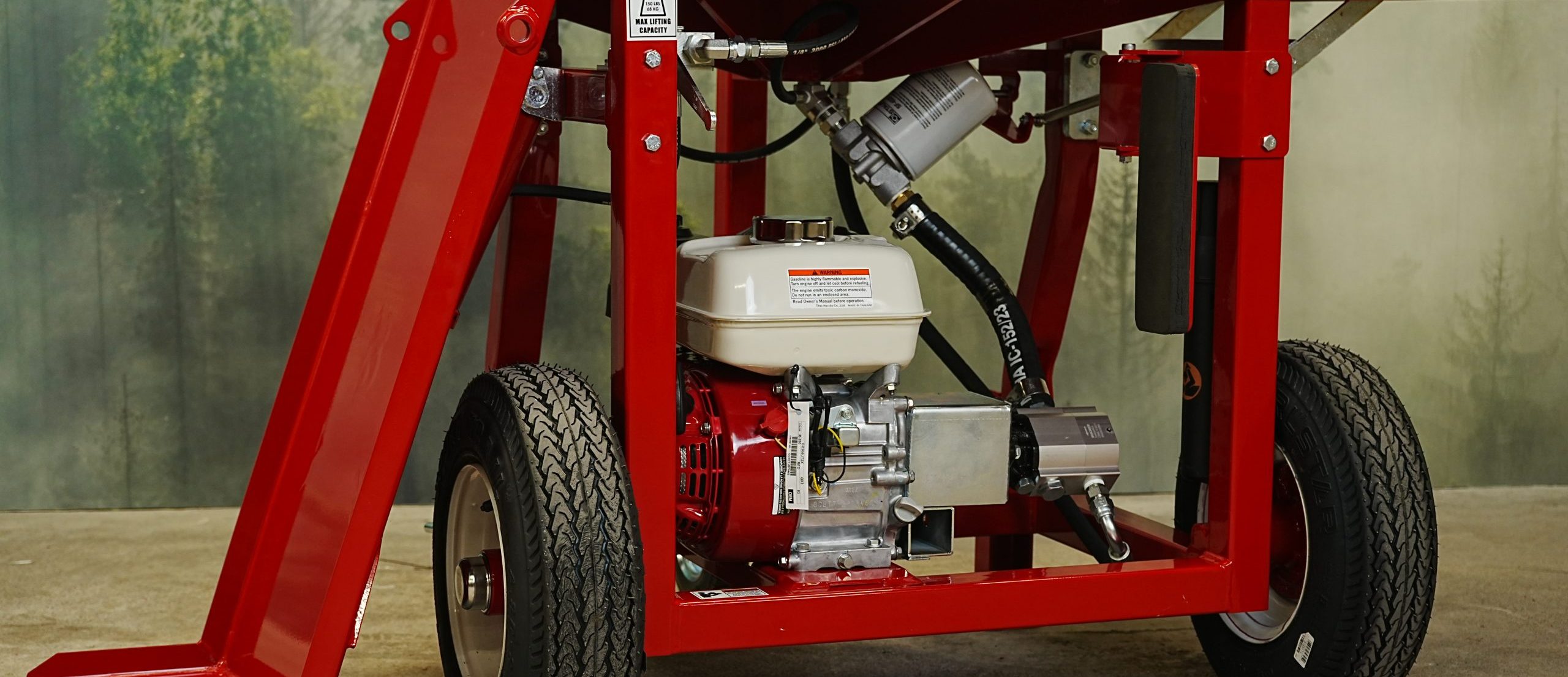

  • Power Source
    Loncin 6.5HP | Honda GX 200 | 1.5 Electric Motor
  • Pump
    11 GPM low pressure | 2.7 GPM high pressure
  • Reservoir
    7 L
  • Stroke Length
    20"
  • Bed Width
    17"
  • Log Tray
    Aluminum 17"W x 18"L
  • Bed Height
    22.5"
  • Knife Height
    8"
  • Cylinder
    2.5 + 20"
  • Tire Size
    8" x 2"
  • Overall Width
    17"
  • Overall Height
    31"
  • Overall Length
    74" Extended | 34.5" Collapsed
  • Weight
    230 LBS
  1. Jeff Leslie – Port Sydney, ON

    Received log splitter and all is good!

    Uploaded image(s):

    Image #1 from Jeff Leslie - Port Sydney, ON
  2. Richard Hamlin – Plevna, ON

    I have been using my Splitfire 3455 wood splitter to split wood for my home in Plevna for 12years. Never had a mechanical problem with it. Splits wood faster than my wife can pile it. Made in Canada eh!

    Uploaded image(s):

    Image #1 from Richard Hamlin - Plevna, ON
    Image #2 from Richard Hamlin - Plevna, ON
  3. Tim Burgess -Trent Lakes, ON

    Last June (2020) our son surprised us for our 25th wedding anniversary with a brand new Split-Fire log splitter and a truckload of maple logs!! He even did all the splitting. Later in the summer I got the chance to split other firewood from our property and was very impressed with your equipment. I personally like the fact that it splits going both directions. The log splitter is easy to use and move around. Thanks for building a rugged, reliable piece of equipment.

    Uploaded image(s):

    Image #1 from Tim Burgess -Trent Lakes, ON
    Image #2 from Tim Burgess -Trent Lakes, ON
    Image #3 from Tim Burgess -Trent Lakes, ON
    Image #4 from Tim Burgess -Trent Lakes, ON
    Image #5 from Tim Burgess -Trent Lakes, ON
  4. Gisele Daudet – St Laurent, MB

    We received the wood splitter last week and it was like Christmas all over again.  My husband and our neighbor put it together and used it immediately.  They were like little boys with a new toy. I have to thank you Kyle for all your help in getting this wood splitter to us. Everything from the first contact with you, the communication, the contact with Ashley, the delivery and pick-up were without any problems whatsoever. The video that helped with assembly is well made. It would be wonderful if all companies were as accommodating as you have been. My hat is off to you and your company. We will have no problem promoting you and your products as I’m sure they all measure up to the same excellent craftsmanship.

  5. Eugene Kilmenko – Merrill, MN

    Eugene enjoying his 2265 machine with a Kubota L-Series

    Custom 2265 with 3 hp electric motor.

    Uploaded image(s):

    Image #1 from Eugene Kilmenko - Merrill, MN
  • 1165 – Loncin Engine

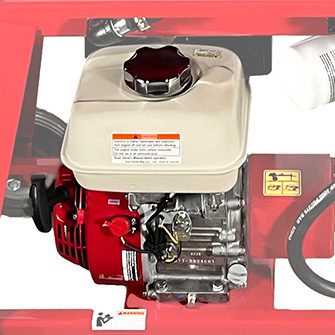

  • 1165 – Honda Engine Option

  • 1165 – Electric Engine

  • 1165 – 4 Knife Option

  • 1165 – Wheel Option

  • Customize this product for purchase

    ENGINE *

    • 0 $
    • 445 $
    • 420 $

    OPTIONS

    • 61 $
    • 89 $

    Approx. shipping date for the first week of February due to the limited supply of valves.
