20-22 Ton Rated
20-22 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
Extended Stroke Options
Extended Stroke Options
4.5 Second Cycle Time
4.5 Second Cycle Time

Split Wood Twice as Fast – No Waiting Between Cycles

Less time, less effort, more wood. Built for serious homeowners and pros.

3209

$1,760.00

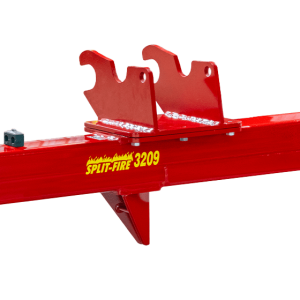

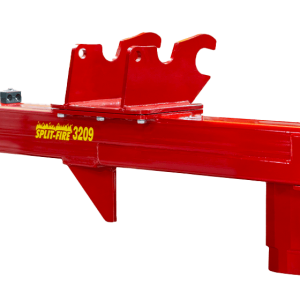

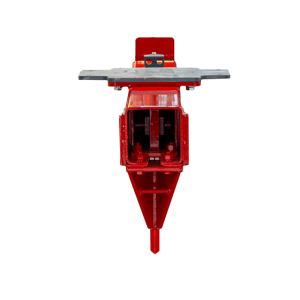

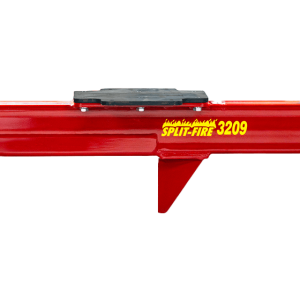

Do you have logs weighing 400 lbs or more that need splitting? The Split-Fire 3209 excavator log splitter is here to save you time and effort, designed specifically to mount on small excavators in the 1.5 to 5 ton range and pushing 20 tons of rated splitting force at 2900 PSI. Manufactured with a heavy-duty tube frame, the cylinder and slider are kept safe internally allowing for years of rough use without any worry about damage to mechanical components. Because the 3209 uses self-lubricating UHMW slide pads and takes all hydraulics from your excavator, it is a maintenance-free machine that will always be ready for you to attach to your excavator and start splitting.

Controlling all the lifting, pushing, and splitting action comfortably from inside the excavator cab, the 3209 will help you easily and safely deal with large logs that you used to leave until last or discard, letting you process them quickly into valuable energy for your heating needs.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

3-4 Weeks Build Time

SEE IT IN ACTION

MACHINE SPECS

Frame
6" x 6" Steel Tube
Log Capacity
30" - 48" Diameter
Cycle Time
9 Sec. Extend and Return Stroke @ 12GPM | 14 Sec. @ 8 GPM
Tonnage
20 tons Splitting Force @ 2900 PSI
Cycle Time =
4.679(Stroke/GPM)
Power Source
Excavator
Pump
Excavator Pump Displacement
Reservoir
Excavator
Stroke Length
24"
Connections
1/2" NPT
Overall Width
12"
Overall Length
75"
Overall Height
18"
Weight
275 lb.
Knife Height
11"
Cylinder Size
3.5” x 24"
Hydraulic Flow
8 GPM - 20 GPM
3209 technical drawing
