• 3403

20-22 Ton Rated
20-22 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
Log Lifter Compatible
Log Lifter Compatible
9-11 Second Cycle Time
9-11 Second Cycle Time
Interchangeable 4-Way Wedge
Interchangeable 4-Way Wedge

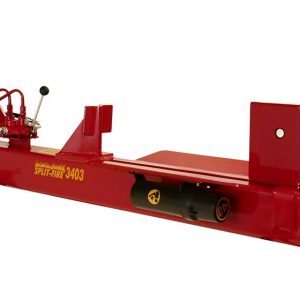

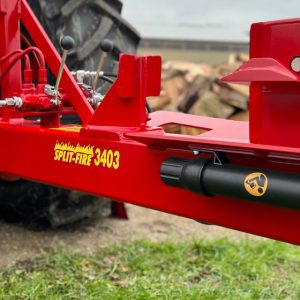

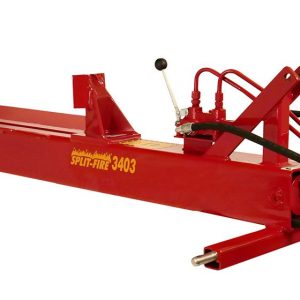

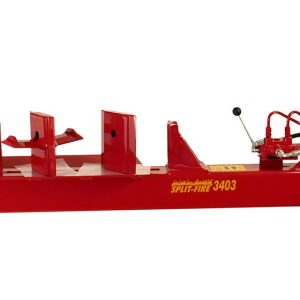

Log Splitter 3403

Like the 3203 log splitter, the 3403 offers the same 20 tons of power at 2900 PSI but increases flexibility with a 2-way and 4-way knife. Whether you are splitting twisted tree line logs with the 2-way knife or quartering straight grain logs with the 4-way knife, the 3403 is sure to impress. Unlike conventional push style 3pt hitch log splitters, the 3403 offers a quick dual action that is safe and efficient.

Read More
  • Frame
    6" x 6" steel tube
  • Tonnage
    20 tons @ 2900 psi
  • Cycle Speed
    9 sec. @ 12 gpm | 14 sec. @ 8 gpm | 28 sec. @ 4gpm
  • Power Source
    3 Pt. Hitch
  • Pump
    Tractor Pump Displacement
  • Reservoir
    Tractor
  • Stroke Length
    24"
  • Bed Width
    15"
  • Quick Connects
    Not included
  • Overall Width
    34"
  • Overall Length
    73"
  • Overall Height
    18"
  • Weight
    350 lbs
  • Bed Height
    3 Pt. Hitch Raise/Lower
  • Knife Height
    9½” / 2-way | 9½” / 4-way
  • Cylinder Size
    3½” x 24"
  • Hydraulic Flow
    4 gpm – 12 gpm
1-5 of 29 reviews
  1. Works great! No lack of power. Lift works awesome!!

    3203
    Image #1 from Rick H
    Image #2 from Rick H
  2. Wayne with his 3203 on his Kubota Tractor

    Just received my 3203.  It arrived earlier than expected too! The 4” extended log lifter was exactly what I needed. No more bending over all day hurting my back. Here are pics of a huge red oak 2 feet in diameter that the 3203 made into easy work. This splitter didn’t even grunt lifting and splitting this chunk.
    Kyle, thanks again for all your help and attention to meeting my needs.

    3203
    Image #1 from Wayne Krangle – Haliburton, Ontario
    Image #2 from Wayne Krangle – Haliburton, Ontario
    Image #3 from Wayne Krangle – Haliburton, Ontario
  3. The optional 3 inch knife extension worked great on the larger blocks. But the best option was the lift table, no lifting heavy blocks. This is a heavy duty wood splitter for sure.

    Image #1 from Al Hatt - Ilderton, ON
  4. 3203 mounted on a Bobcat 853 Skid Steer Loader

    zLove love love the new splitter!

    Image #1 from Maria Liu - Windsor, ON
  5. Terry enjoying his 3203 mounted on a New Holland Workmaster

    I have already split over a cord of oak with it and it couldn’t be better! That log lift is worth double it’s cost in value! I couldn’t split what I am without it.

    Image #1 from Terry Finley - Campobello, SC
    Image #2 from Terry Finley - Campobello, SC
  • 36″ Extended Stroke

  • Log Table

  • Hydraulic Log Lifter

  • 3 Point Hitch Leg Kit

  • Bolt-on PTO kit

  • Class 2 Hitch

  • Closed Center 3 Point Log Lifter Valve

  • Steel Storage Stand – 3PT

  • 4″ Log Lifter Extension

  • 8″ Log Lifter Extension

  • Ball Couplers

  • Current build time of 6-8 weeks.

    STROKE LENGTH *

    LOG LIFTER & TABLE

    LOG LIFTER EXTENSION

    PTO Kit

    OPTIONS

Pay a deposit of $500.00 per item
