Log Splitter 3165V

Powerful, aggressive, and unstoppable. The 3165V is built for serious firewood production and demanding workloads. With a 4.5 second cycle time, or 4 seconds with a high flow kit, the 3165V is designed for homesteaders heating their homes all winter, commercial firewood operations, and anyone who refuses to waste time behind slow & underpowered equipment.

The 3165V delivers relentless splitting performance with 15 tons of splitting force and lightning-fast 1 second return. Its ergonomic design and standard knee control keep wood moving and productivity high, even when splitting the toughest rounds. When efficiency, durability, and raw splitting power matter most, the 3165V is built to work as hard as you do.

  • Frame
    Vertical 6"x 6" steel tube
  • Tonnage
    15 tons splitting force
  • Cycle Speed
    4.5 Seconds | 4 seconds high flow

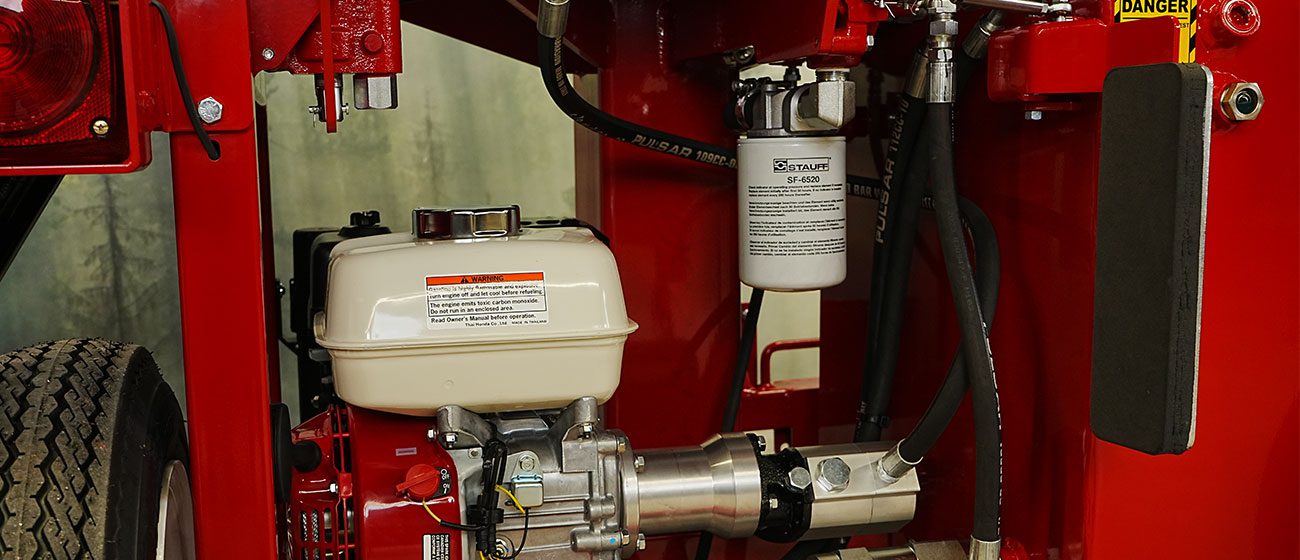

  • Power Source
    Honda GX 200 (Standard) | Loncin 6.5 ) | Honda GX270 (High Flow)
  • Pump
    13 gpm | 17 gpm (High Flow)
  • Reservoir
    47 L | 12.5 gal
  • Stroke Length
    20"
  • Bed Width
    44"
  • Bed Depth
    22"
  • Bed Height
    35.5"
  • Knife Length
    11"
  • Cylinder
    3.5" x 20"
  • Tire Size
    20" x 4"
  • Overall Width
    48"
  • Overall Height
    65" | 75" (With Log Lifter)
  • Overall Length
    58" | 44" (Hitch Folded)
  • Weight
    950 Ibs (No options)
