18 Ton Rated
18 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
24″ Stroke
24″ Stroke
Log Lifter Compatible
Log Lifter Compatible
4-6 Second Cycle Time
4-6 Second Cycle Time

Split Wood Twice as Fast – No Waiting Between Cycles

Less time, less effort, more wood. Built for serious homeowners and pros.

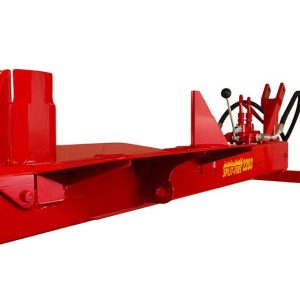

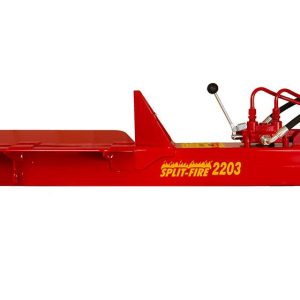

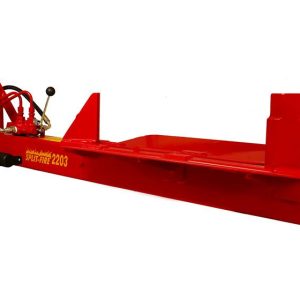

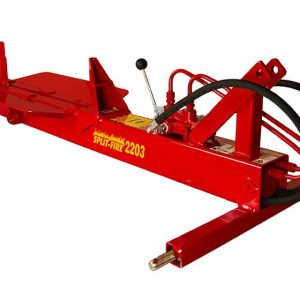

2203

$1,669.00

Built for compact and medium frame tractors, Split-Fire’s 2203 is the most compact model in Split-Fire’s 3 point hitch log splitter lineup. Designed to split small to medium rounds, the 2203 is optimal for low flow tractors while maintaining a decent cycle time. With 18 tons of splitting force at 3000 PSI, this machine is ideal for homeowners and farmers looking for efficiency, safety, quality, and reliability.

All Split-Fire 3pt hitch log splitters’ performance is dictated by a tractor’s hydraulic system. Since the tractor supplies all hydraulics, these 3pt hitch log splitters are maintenance free. Bolt-on options like the hydraulic log lifter can make lifting larger rounds a breeze, and if your tractor can’t supply sufficient flow or pressure, the PTO kit option will turn this log splitter into a well utilized 3-point hitch attachment. Verify your tractors hydraulic specs with the manufacturer or a great resource like tractordata.com.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

6-7 Weeks Build Time

SEE IT IN ACTION

MACHINE SPECS

Frame
5” x 5” steel tube
Tonnage
18 tons @ 2900 psi
Cycle Speed
6 sec. @ 12 gpm | 8 sec. @ 8 gpm | 17 sec. @ 4 gpm
Power Source
3pt. Hitch
Pump
Tractor Pump Displacement
Reservoir
Tractor
Stroke Length
24”
Bed Width
19"
Quick Connects
Not included
Overall Width
34”
Overall Length
71”
Overall Height
18”
Weight
240 lbs
Bed Height
3 Pt. Hitch Raise/Lower
Knife Height
9”
Cylinder Size
3” x 24"
Hydraulic Flow
4 gpm - 12 gpm
Total Cycle Time =
3.353(Stroke/GPM)

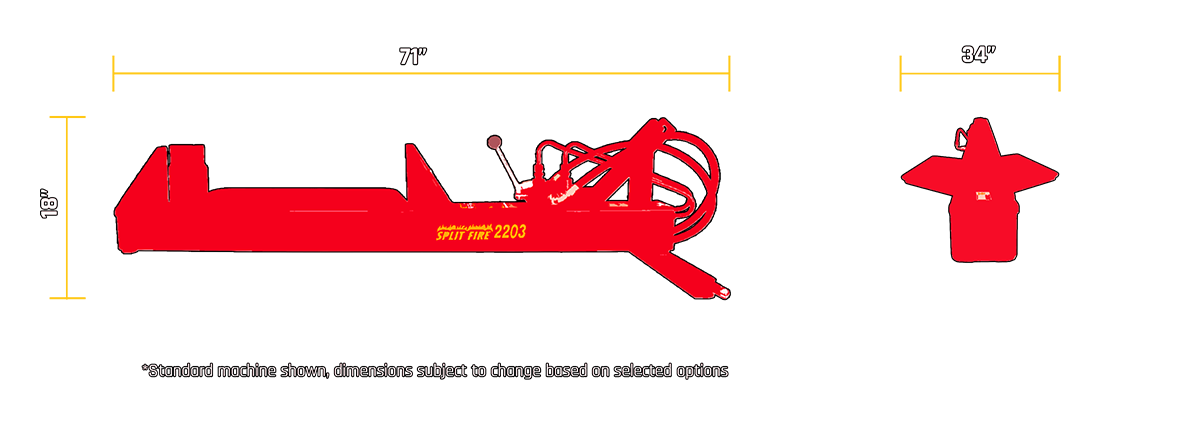

2203 technical drawing
