20-22 Ton Rated
20-22 Ton Rated
2-Way Split
2-Way Split
Safe & Efficient Log Stop Design
Safe & Efficient Log Stop Design
Extended Stroke Options
Extended Stroke Options
Log Lifter Compatible
Log Lifter Compatible
9-11 Second Cycle Time
9-11 Second Cycle Time

Split Wood Twice as Fast – No Waiting Between Cycles

Less time, less effort, more wood. Built for serious homeowners and pros.

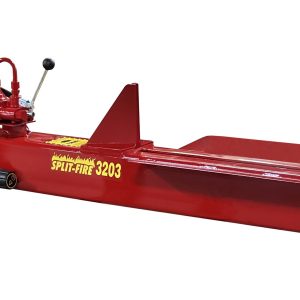

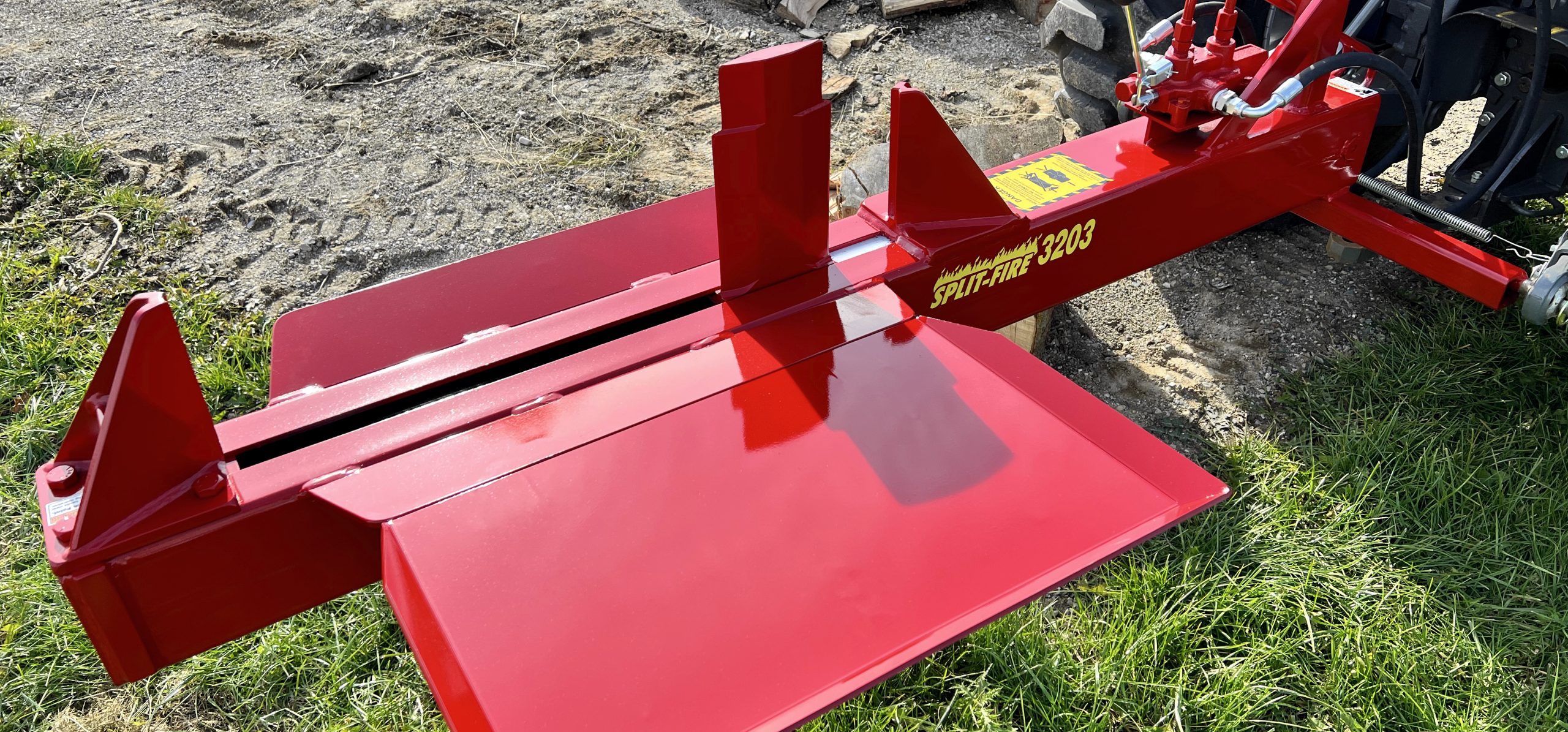

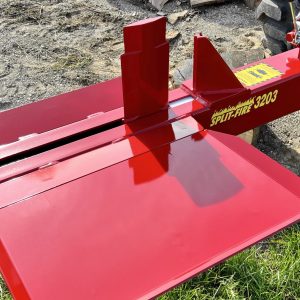

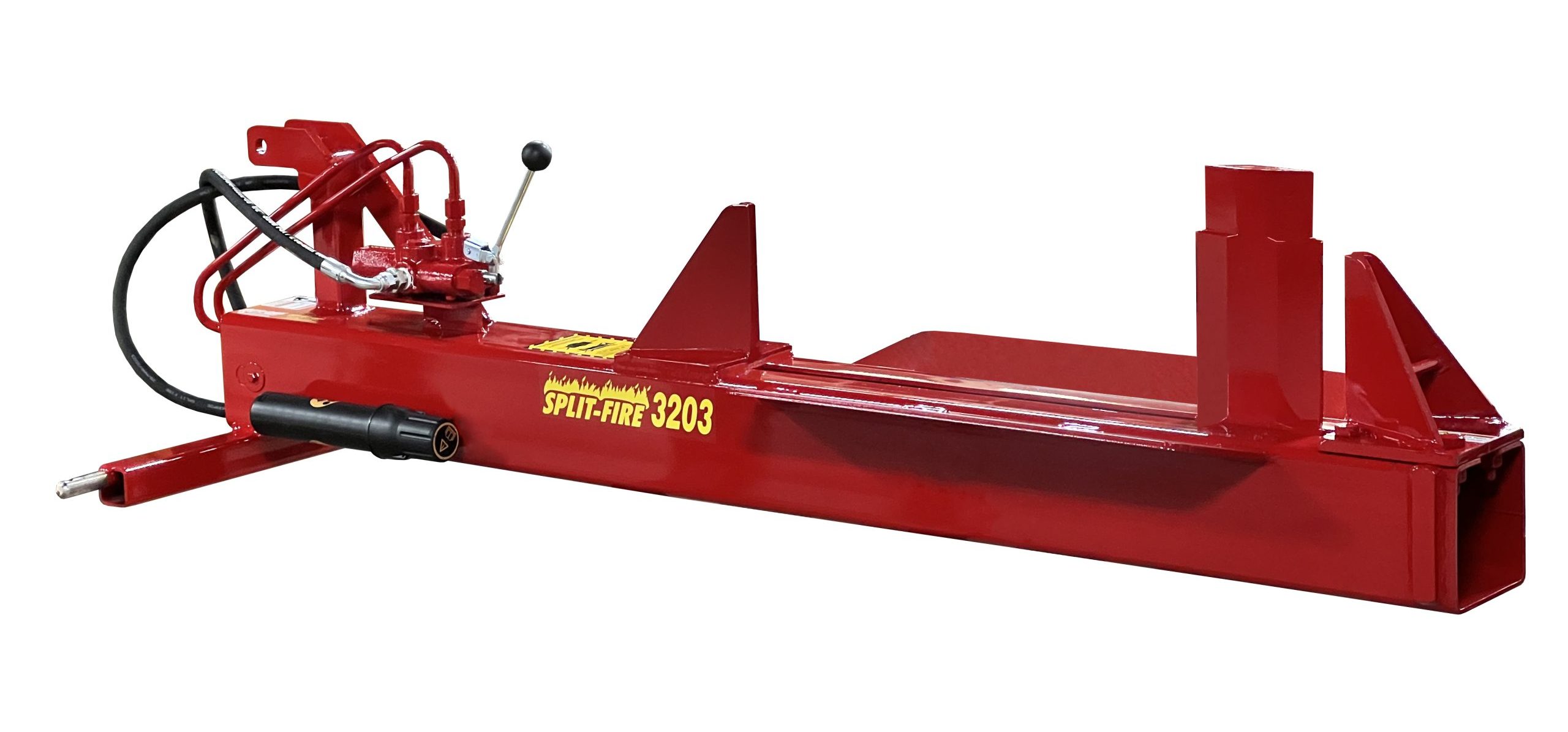

3203

$1,784.00

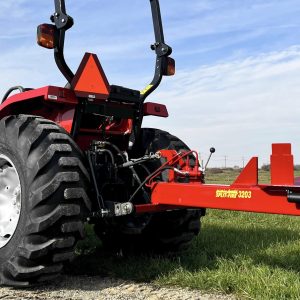

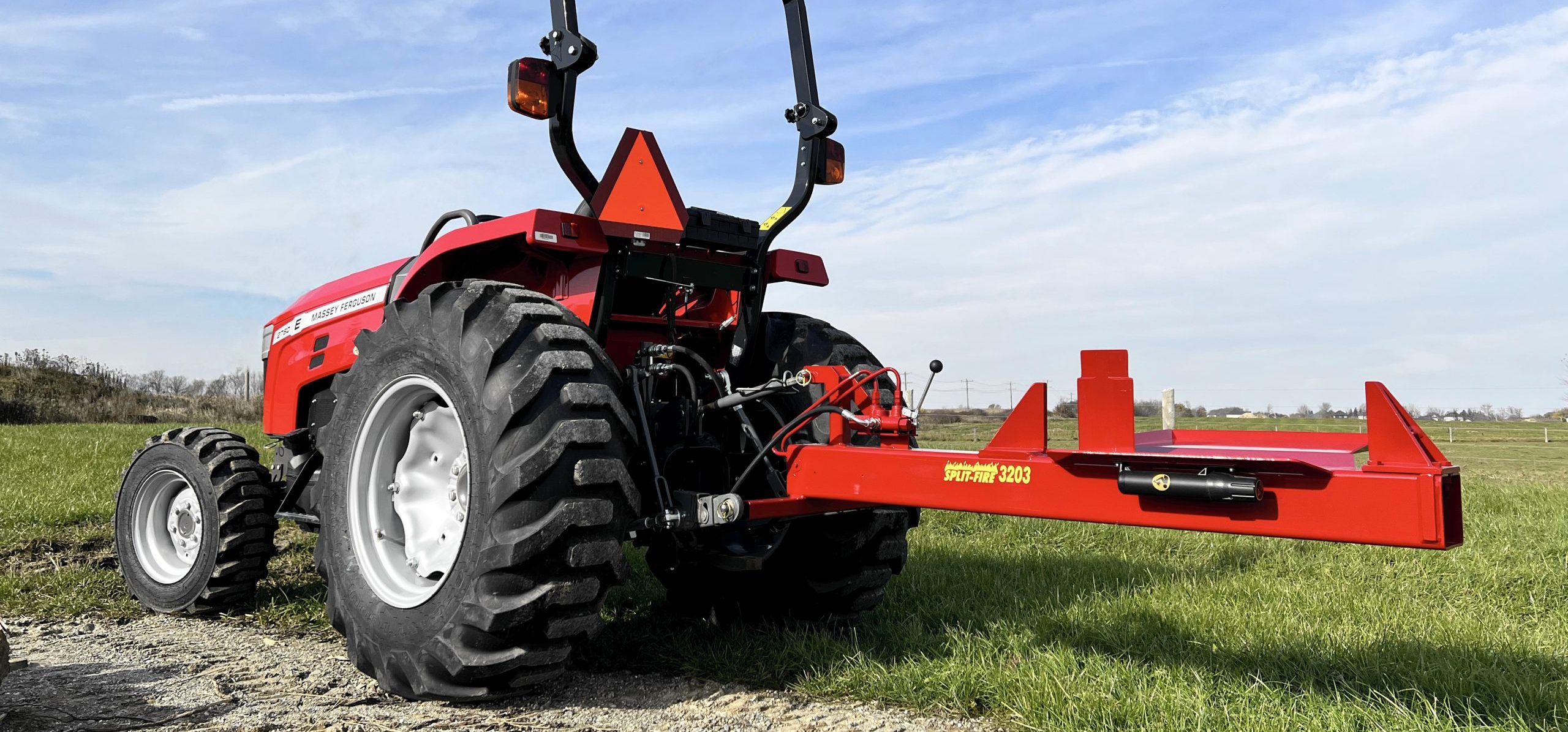

Farmers and homesteaders love the 3203! The most popular 3 point wood splitter in Split-fire’s lineup as thousands of 3203’s have been sold around the world. Designed to fit on medium to large frame tractors, the 3203 pushes 20 tons at 2900 PSI. Large frame tractors usually run at an idle to make this machine move back and forth at a 9 second (both ways) cycle time.

Since the tractor supplies all fluid and power, the 3203 is maintenance free. It’s not uncommon to leave a 3203 log splitter in “the back 40” only to pick it up in the spring to continue splitting. Several weld-on options can add to the productivity of the machine and will allow the operator to split safely and happily for years. A PTO kit is also an available option for tractors that do not provide adequate hydraulics. This wood splitter is the no time for BS option. Hook it up and go. The first 3203’s from over 30 years ago are still splitting logs without missing a beat. Verify your tractors hydraulic specs with the manufacturer or a great resource like tractordata.com.

2–5 Year Warranty

BUILD & PRICE

OPTIONS

3-4 Weeks Build Time

SEE IT IN ACTION

MACHINE SPECS

Frame
6" x 6" steel tube
Tonnage
20 tons @ 2900 psi
Cycle Speed
9 sec. @ 12 gpm | 14 sec. @ 8 gpm | 28 sec. @ 4gpm
Power Source
3 Pt. Hitch
Pump
Tractor Pump Displacement
Reservoir
Tractor
Stroke Length
24"
Bed Width
15"
Quick Connects
Not Included
Overall Width
34"
Overall Length
72"
Overall Height
18"
Weight
290 lbs
Bed Height
3 Pt. Hitch Raise/Lower
Knife Height
11"
Cylinder Size
3½” x 24"
Hydraulic Flow
4 gpm – 12 gpm
Total Cycle Time =
4.679(Stroke/GPM)

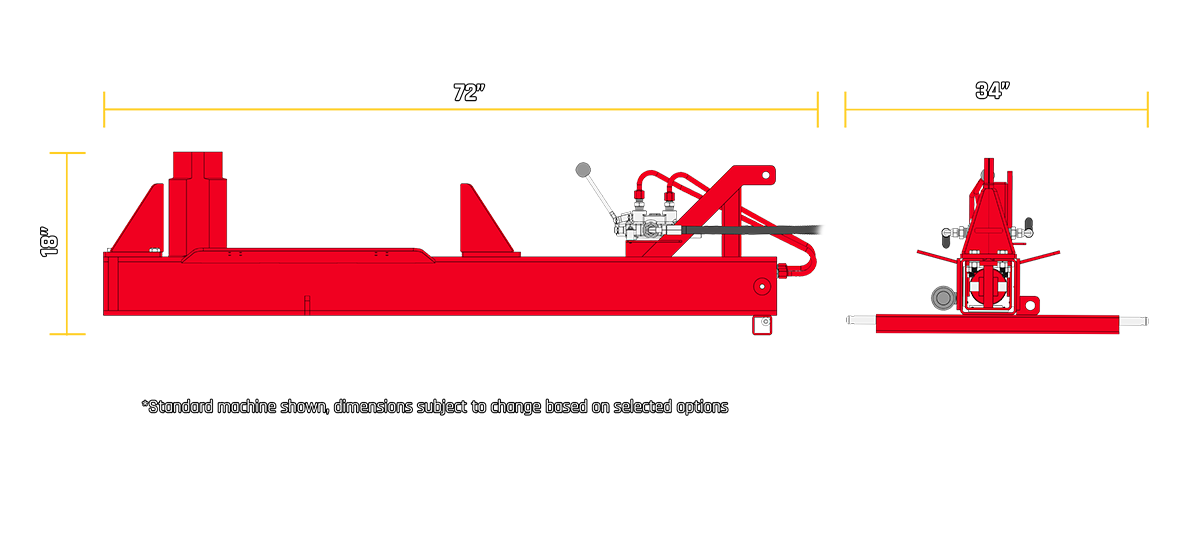

3203 technical drawing
