Log Splitter 1165V

Compact. Efficient. Durable. The 1165V is a quality tool that is perfect for feeding your summer campfires and processing your winters worth of firewood. This log splitter is ergonomic, and the quick cycle time and auto return won’t keep you waiting. With 3 power options to choose from, including electric, this log splitter will be a perfect fit for your needs. When you’re done, take advantage of its design, fold it up and slip it away into the corner of your garage or shed..

Read More
  • Frame
    4" x 6" Vertical steel tube
  • Tonnage
    7.5 tons splitting force
  • Cycle Speed
    3.5 seconds | 5 Seconds Electric Motor Option
  • Power Source
    Loncin 6.5HP | Honda GX 200 | 1.5HP Electric Motor
  • Pump
    11 GPM low pressure | 2.7 GPM high pressure
  • Reservoir
    17 L
  • Stroke Length
    20"
  • Bed Width
    28"
  • Bed Depth
    18"
  • Bed Height
    31.5"
  • Knife Height
    8.75"
  • Cylinder
    2.5 x 20"
  • Tire Size
    15.5" x 4"
  • Overall Width
    40"
  • Overall Height
    84"
  • Overall Length
    50.5" Extended | 36" Collapsed
  • Weight
    450 LBS
1-5 of 28 reviews
  1. I’m telling you folks right now ! This Split-Fire 1165V way over past my expectations! Such a wonderful little powerhouse, if you’re thinking about one don’t wait this is the best affordable vertical wood splitter on the market. Thank you Split- Fire I couldn’t be happier 👍 PS 45minutes later!!!

    Image #1 from Dave Holmes
    Image #2 from Dave Holmes
  2. Great splitter, I’ve been using it years!

  3. Our new Split-Fire 2265 showed up today and I could not be more delighted with the product. I was expecting to have to do quite a bit of assembly, but it came fully assembled. Okay, I thought, I’ll just run into the city and grab some hydraulic oil and engine oil. After checking, I was pleased to learn the machine was fully ready go to – just add gas!! I gave it a warm welcome with a tank full of four-stroke Aspen fuel 😉.

    Tested the machine out and am beyond ecstatic with how it works. Amazing torque even at low RPMs which keeps noise levels down; fast cycle time; generous log table to minimize handling; a real pleasure to operate!

    It turns out buying Canadian-made pays off. So incredibly happy that I did not go with a big-box option.

    Thank you for this wonderful product. I often say “Old sayings become old for a reason!” Turns out “You get what you pay for!”

    Included a few pictures; this is not where we usually split! I was considering an electric splitter to keep the noise down in our semi-residential area, but have no concerns whatsoever about our splitter – the Honda engine is nice and quiet, makes way less noise than our lawnmower or pressure washer.

    Image #1 from Jared Carlberg
    Image #2 from Jared Carlberg
    Image #3 from Jared Carlberg
  4. The 2265 is absolutely awesome! So much faster than my old splitter. It arrives in perfect condition, I fired it up and went straight to work. Great company to deal with!

    Image #1 from Lucas Peek
  5. This is to everyone at Split-Fire who helped customize my splitter. I got the hitch modified as discussed to fit a ball for my quad. I think it looks pretty skookum! Thanks for everything…it has been a pleasure dealing with everyone at Split-Fire. I’ve appreciated your time and considerations. I thought I would send you a couple pics.

    Thanks

    2265
    Image #1 from Dwayne Neustaeter
    Image #2 from Dwayne Neustaeter
  • 1165v – Loncin Engine

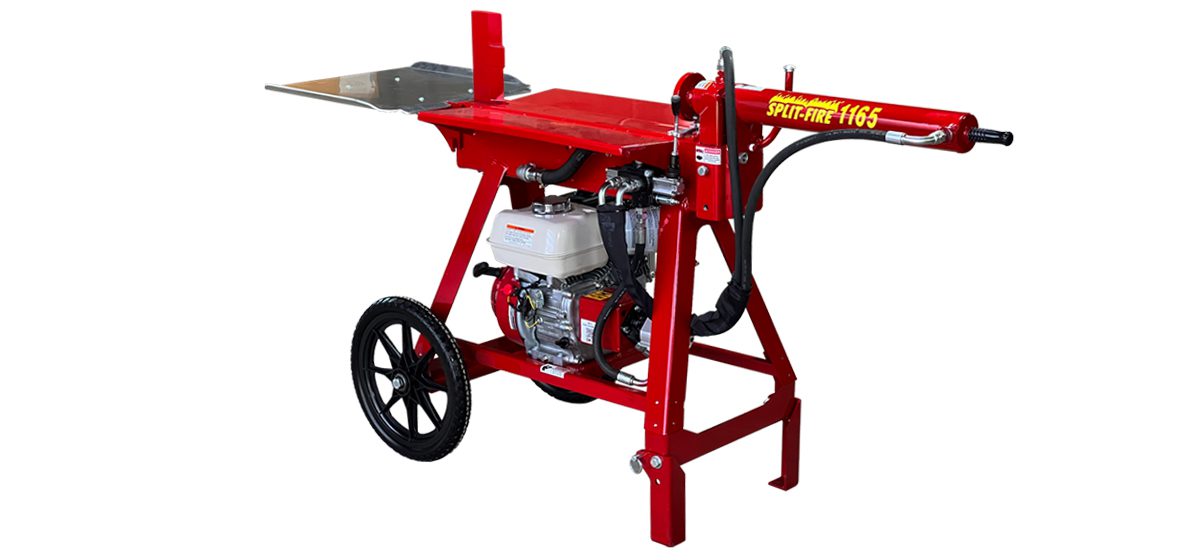

  • 1165v – Honda Engine

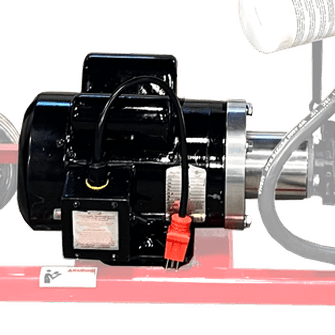

  • 1165v – Electric Motor

  • 1165v – Log Lifter

  • 1165v – Log Table

  • 1165v – Caster Handle

  • Current build time: 14-16 Weeks
